For Mercedes-Benz/Sprinter/Smart

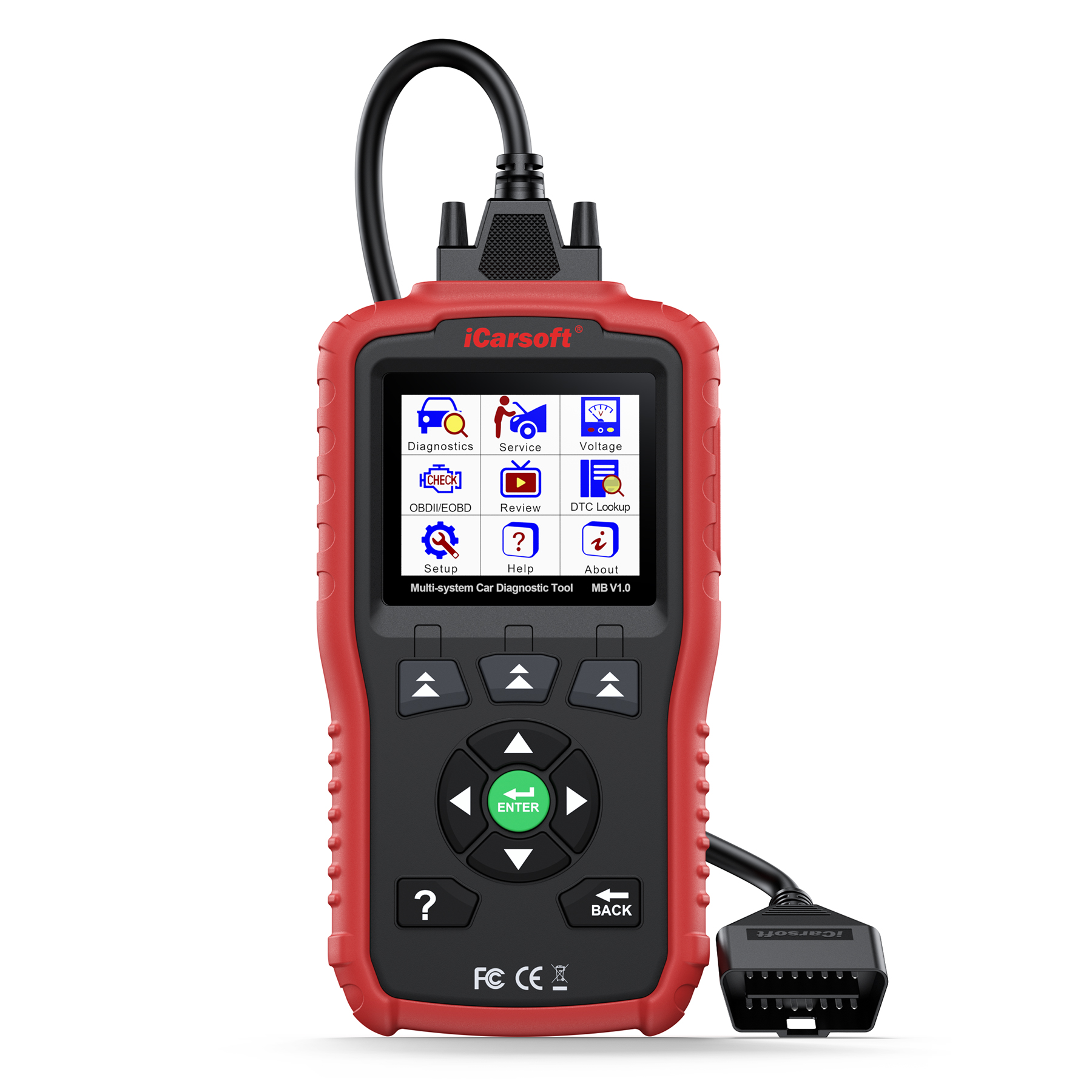

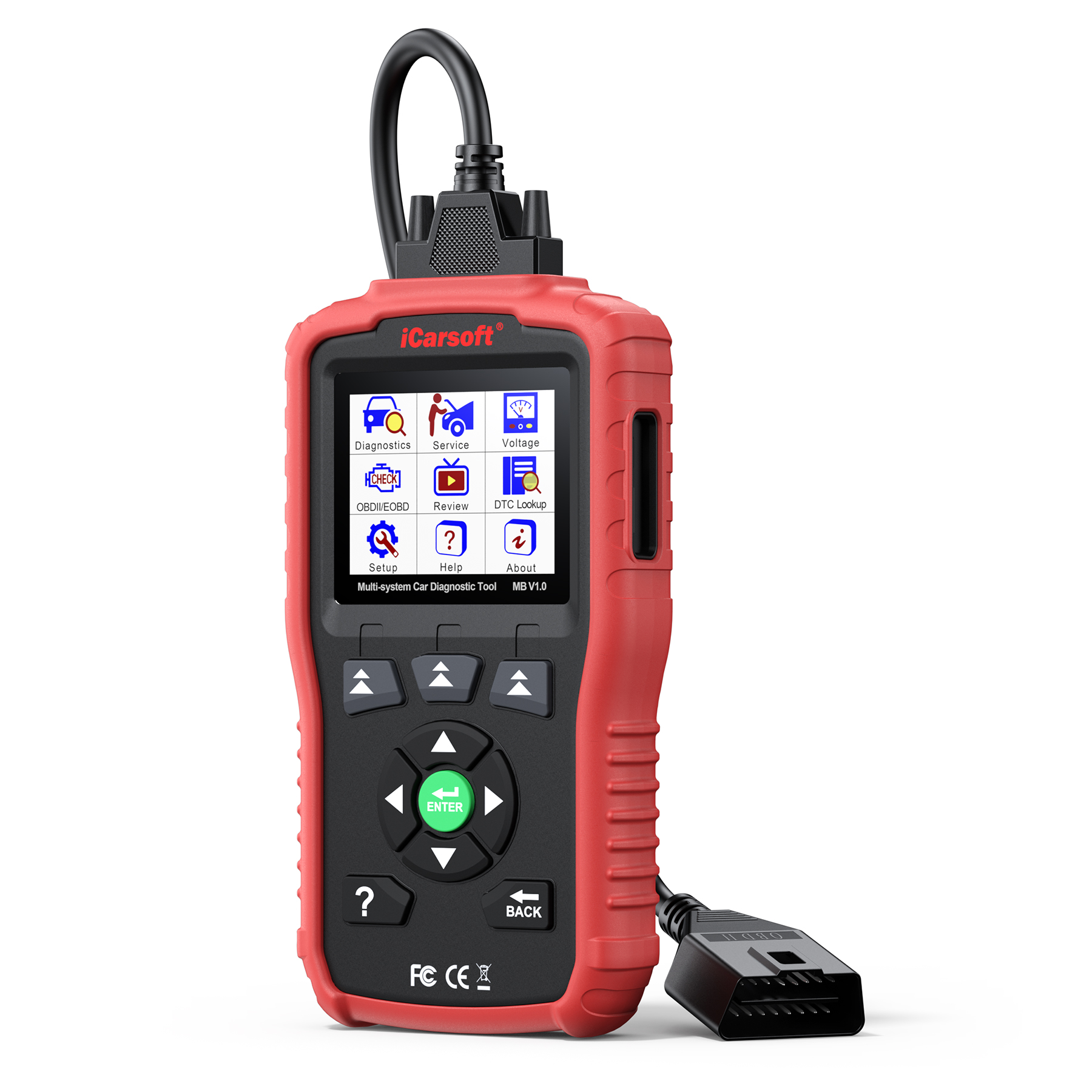

iCarsoft MB V1.0 for Mercedes-Benz/Sprinter/Smart

Specifications
Display: 2.8″TFT LCD, 320*240 Pixels
Operation Temperature: 0°C ~ 50°C
Storage Temperature: -20°C ~ 70°C
Operating Voltage: 9 ~ 18V
Operating Current: 150mA@12V (Typical)
Power Consumption: 1.8W(Typical)
Dimension: 187.5*101*32 mm (L x W x H)

Color: redblackorangeblue
Price: $189.95 USD
+ -

Current inventory: 99999

DescriptionSpecificationReviews

Professional Multi-system Auto Diagnostic Tool MB V1.0 for Mercedes-Benz/Sprinter/Smart + OBDII +Oil Reset

  iCarsoft MB V1.0 is a professional and powerful vehicle fault diagnosis tool for Mercedes-Benz/Sprinter/Smart developed by iCarsoft Technology Inc. With a 2.8" TFT LCD and unique diagnostic software, it features full ECU diagnosis of single vehicle brand and test modes mainly include: CANBUS, ISO9141, KWP2000, and J1850 etc. It enables technicians to accurately diagnose complex problems.

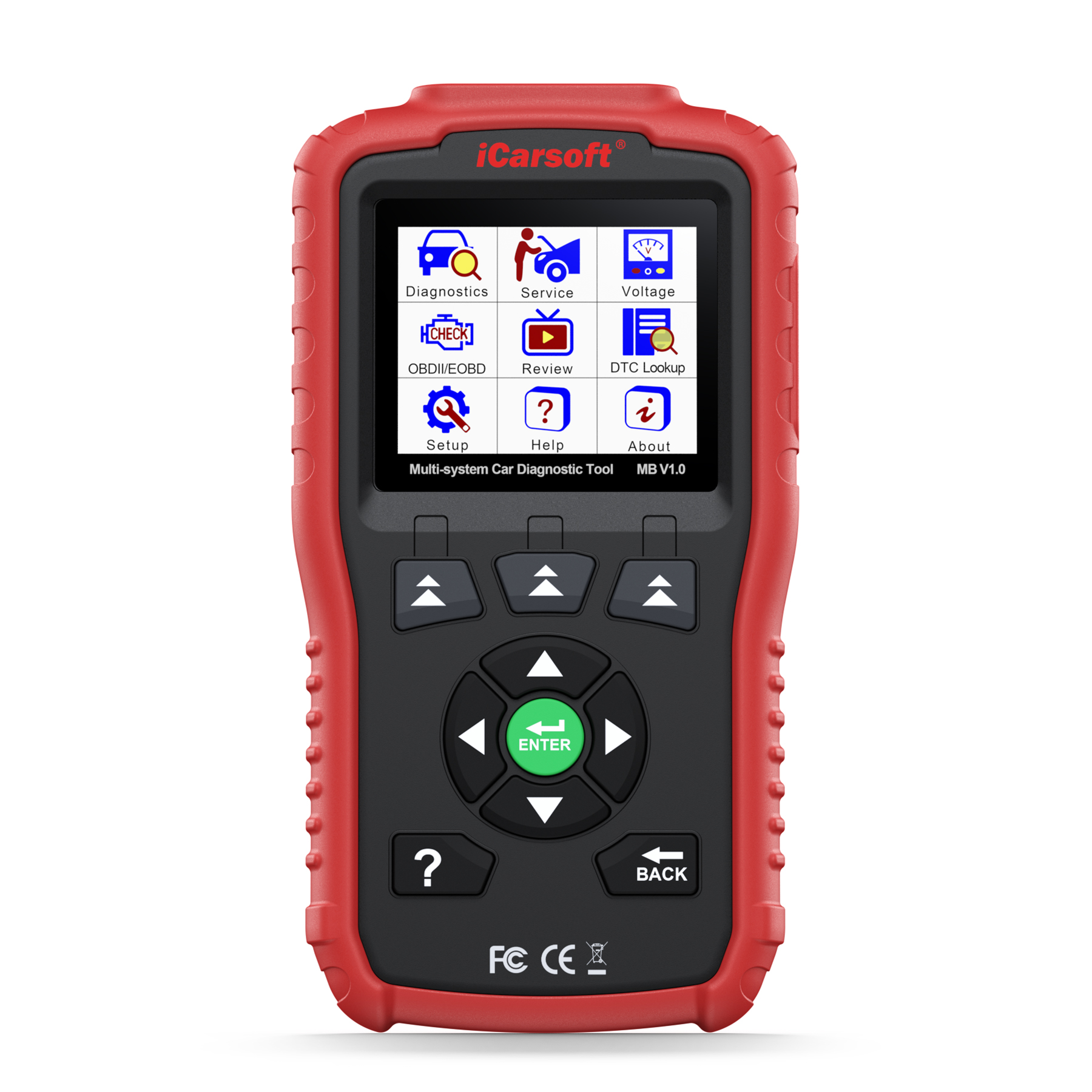

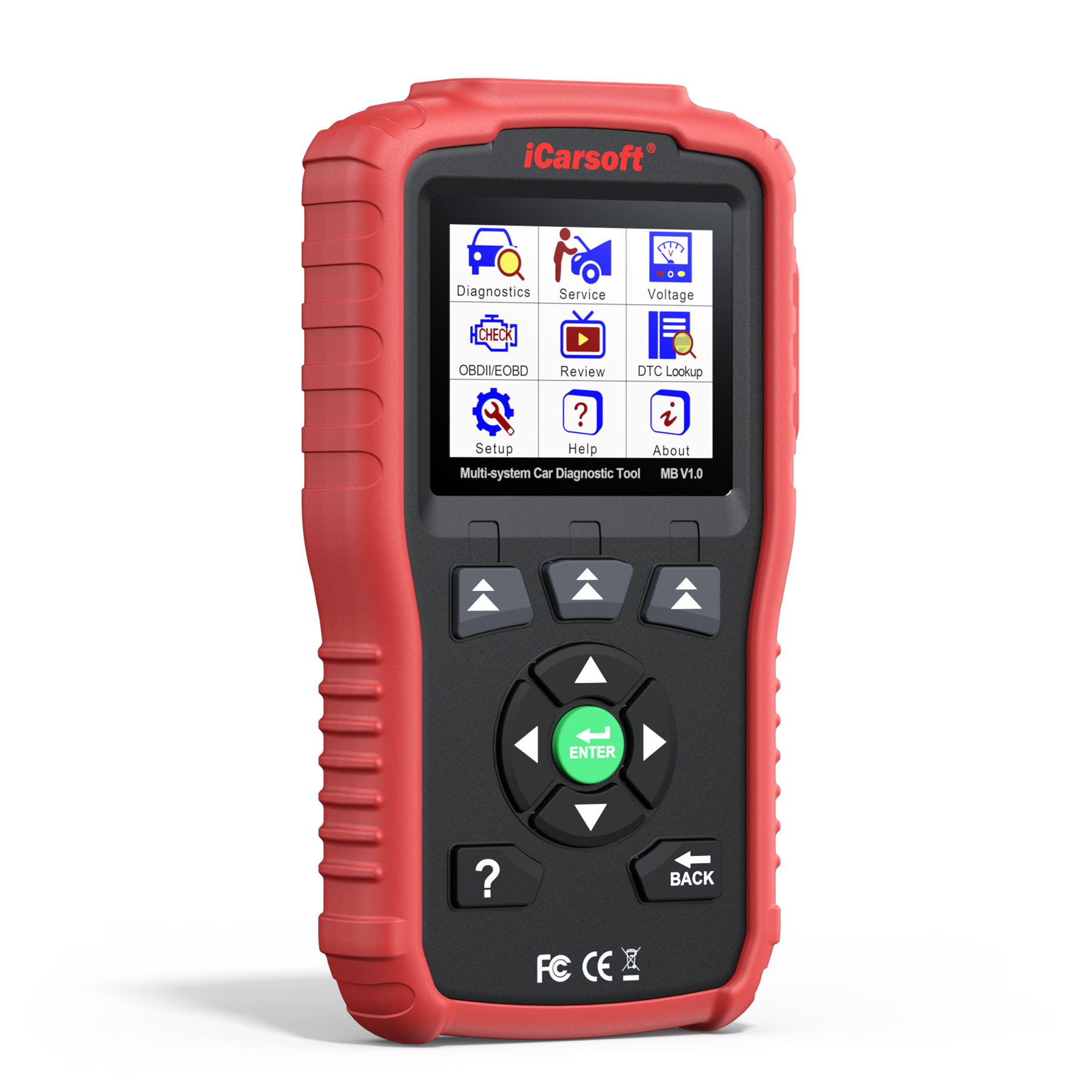

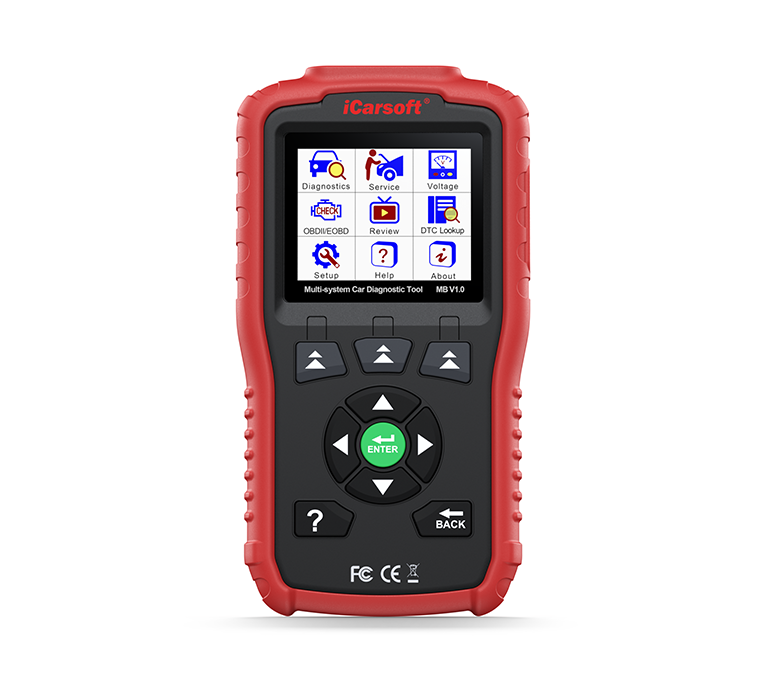

① LCD DISPLAY--Indicates test results.
② BACK BUTTON--Returns to previous menu.
③ UP BUTTON--Moves cursor up for selection.
④ DOWN BUTTON--Moves cursor down for seiection.
⑤ LEFT BUTTON--Moves cursor up for selection.
⑥ RIGHT BUTTON--Moves cursor down for selection.
⑦ ENTER BUTTON--Confirms a selection(or action)from a menu list.
⑧ FUNCTION BUTTON--In case of special use.
⑨ FUNCTION BUTTON--In case of special use.
⑩ FUNCTION BUTTON--In case of special use.
⑪ HHELP BUTTON--Shows help information for test results or user operation.
Product Features

1. iCarsoft MB V1.0 can do it all-reads and clears trouble codes on most of the systems

such as engine, transmission, ABS and airbag etc.
2. Support OBDII/EOBD Ten Modes of Operation
3. Read Live Data
4. Full ECU Diagnosis
5. Applies to the single Brand of all Models equipped with OBDII-16 DLC
6. Easy To Use with Silicone Keys
7. Oil Light/Service Reset: Support service lamp reset.

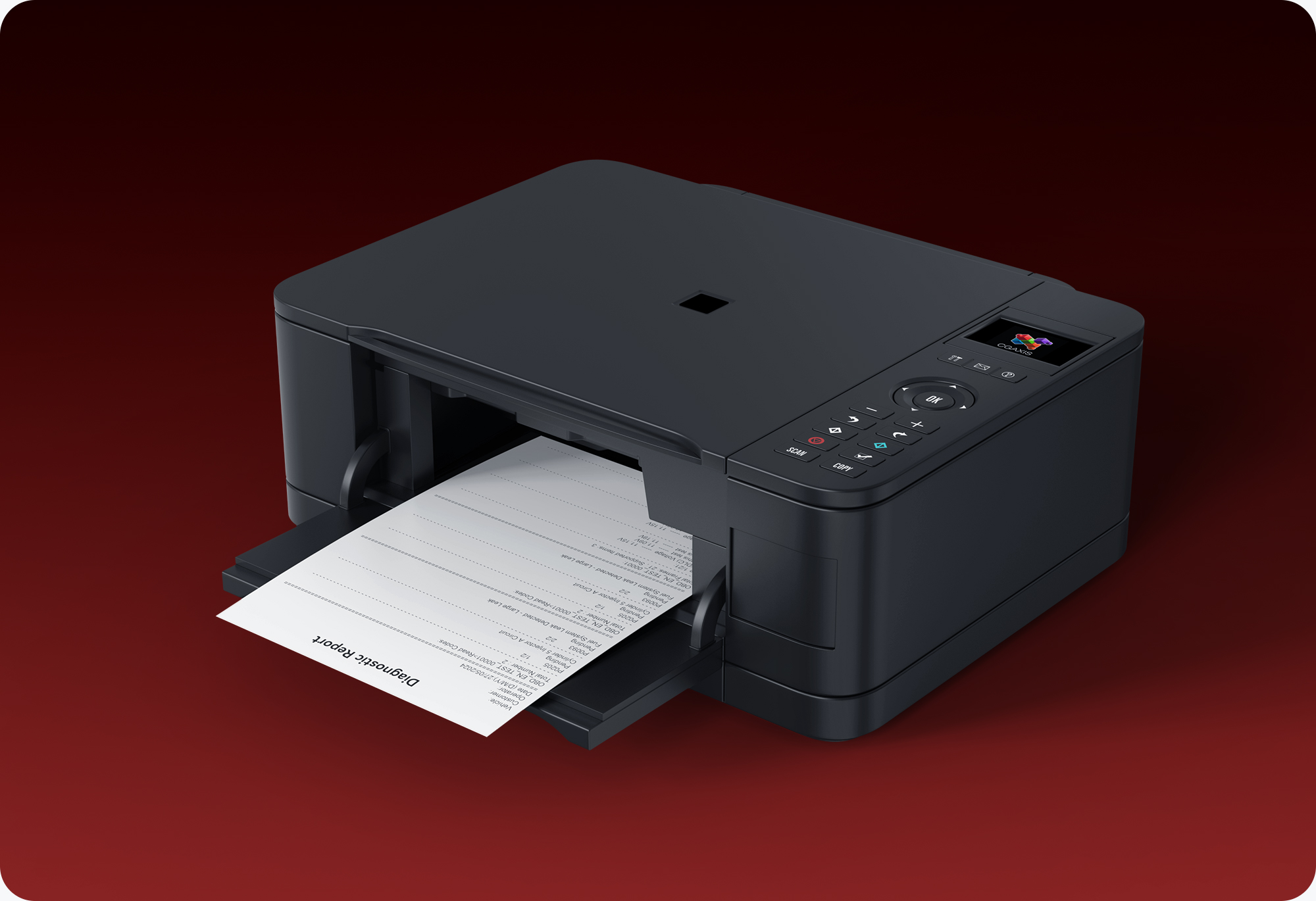

8. The Print Data function allows you printing out diagnostic data recorded by the scan

tool or customized test reports.
9. Battery test allows you getting the voltage of battery with OBD port by the scan tool

when the engine starts.
10. DTC Library to lookup when user is operating this tool.
11. Upgrade via Computer
12. Multi-language: English, German, Dutch, Spanish, French.

Ten
super advantages

Diagnose Single Brand of all Models (OBDII-16DLC)
Full System Diagnosis
Support Oil Service Reset
Read &Clear DTC
Read Live Date
Support Battery Test
Support Data Review and Print
Full Speed Upgrade via Computer
Support Multi-Language
Available in Red, Black, Orange and Blue


OBDII function
1. Read Codes
2. Erase Codes
3. I/M Readiness -- I/M Readiness indicates whether or not the various
emissions-related systems on the vehicle are operating properly and
are ready for Inspection and Maintenance testing.
4. Data Stream
5. Freeze Frame -- When an emission-related fault occurs,
certain vehicle conditions are recorded by the on-board
computer. This information is referred to as freeze
frame data. Freeze Data is a snapshot of the op-
erating conditions at the time of an em-ission-
related fault.
6. O2 Sensor Test -- This option allows retrieval
and viewing of O2 sensor test results for most
recently performed tests from the vehicle ' s on-
board computer.
7. On-Board Monitoring -- This function can be
utilized to read the results of on-board diagnostic
monitoring tests for specific components/systems.
8. Evap System Test -- The EVAP test function lets
you initiate a leak test for the vehicle's EVAP system.
Before using the system test function, refer to the
vehicle's service repair manual to determine the
procedures necessary to stop the test.
9. Vehicle Information -- The option displays the vehi-
cle identification number (VIN), the calibration verification
number (CVN), and other information of the test vehicle.
10.Retrieve generic (P0, P2, P3, and U0), manufacturer sp-
ecific
(P1, P3, and U1) codes and pending codes
11.Turn off Check Engine Light (MIL), clear codes and reset monitors
12. Read live PCM datastream
13. Support CAN (Controller Area Network) and all other
14.Multilingual menu and DTC definitions- English, Spanish, and German, etc
15.Read pending DTCs
16.Read permanent DTCs
17. DTCs search
18. Supports most of the OBDII/EOBD test
modes include: CAN, ISO9141, KWP2000,
J1850 VPW and J1850 PWM.
19. Works on most of 2001 and later OBDII
compliant PETROL European vehicles
20. Works on most of 2004 and later OBDII
compliant DIESEL European vehicles
21. Works on most of 1996 and later OBDII
compliant US and Asian vehicles

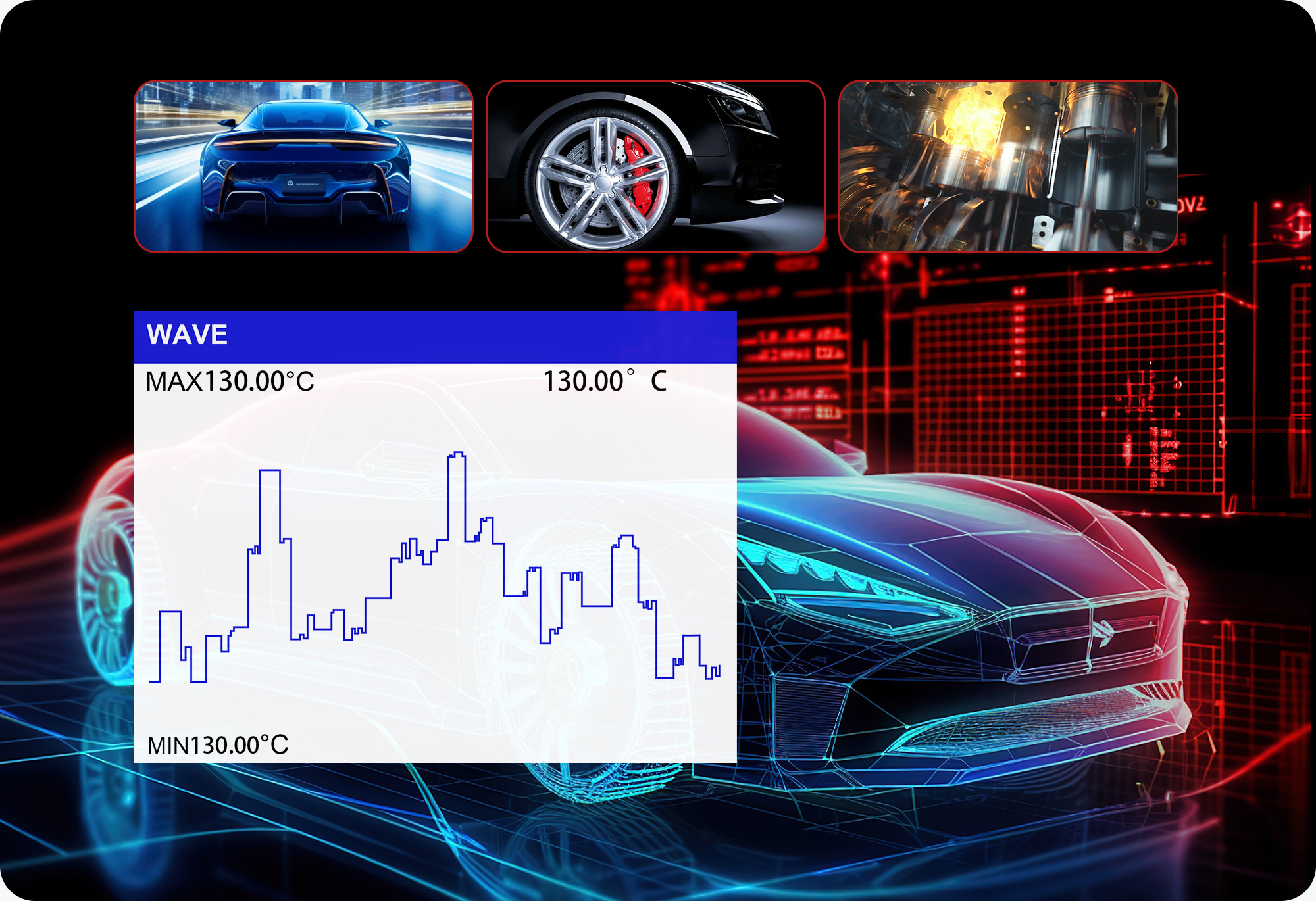

22. View & Graph Live Data in Color Grap-
hing and blazing fast refresh rate for better
graphing and live data readings.
23. Comprehensive Help, Including OBD P-
arameter, Mode Explanations & More.
Chassis
• ABS (Anti‐lock Brake System)
• ESP (Electronic Stability Program)
• BAS (Brake Assist System)
• SBC (Sensotronic Brake System)
• ABC/AIRmatic/ Suspension (Active Body Control)
• VP (Vacuum Pump Brake Booster)
• TPC/TPM (Tire Pressure Monitor)
• EFB (Electric parking brake)
• ES (Electrical power steering)
• EPB (Electric parking brake)
• ARS‐Roll control
• ABR (Adaptive Brake)


System coverage
Chassis:
• ABS (Anti‐lock Brake System)
• ESP (Electronic Stability Program)
• BAS (Brake Assist System)
• SBC (Sensotronic Brake System)
• ABC/AIRmatic/ Suspension (Active Body Control)
• VP (Vacuum Pump Brake Booster)
• TPC/TPM (Tire Pressure Monitor)
• EFB (Electric parking brake)
• ES (Electrical power steering)
• EPB (Electric parking brake)
• ARS‐Roll control
• ABR (Adaptive Brake)


Drive

• ME2.8 (6,8 cylinders) (Motor Electronics)
• ME2‐SFI (Motor Electronics)
• ME2.7 (Motor Electronics)
• ME‐SFI (Motor Electronics)
• ME‐SFI2.8 (Motor Electronics)
• ECM (Engine control monolith)
• CDI & CDI2 & CDI3 & CDI4 & CDI5 & CDI6 & CDID & CDI‐V1 (Common Rail Diesel Injection)
• CDID3 (Motor electronics)
• FTC (Front Transmission Control)
• ETC (Electronic Transmission Control)
• ESM (Electronic Selector Module)
• TC/VG (Transfer Case)
• ACS (Automatic Clutch System)
• GRM (Gear Recognition Module)
• AMG DRVU (AMG DRIVE UNIT)
• DTR (Distronic)
• FSCU/FSCU_EC (Fuel pump)
• ISM (Shift module)
• ME97 (Motor Electronics)
• MED97(MotorElectronics)
• MED177 (Motor Electronics)
• SIM271DE20 (Motor Electronics)
• SIM271KE20 (Motor Electronics)
• SIM271KECNG (MotorElectronics)
• SGR (Radar sensors control unit)
• CDI60LS (Motor Electronics)
• IRS‐HLA (Outer left rear intelligent radar sensor system)
• IRS‐HRA (Outer right rear intelligent radar sensor system)
• HAQ (Interwheel differential lock at rear axle)
• MED40 (Motor electronics)
• SG_EM
• UFPCAMG ‐Comtrol unit 'Fuel pump'
• BSA ‐ Belt‐driven starter/alternator
• MED177_M157 (Motor electronics)
• VGSNAG2 (Fully Integrated transmission control)
• VGSFDKG (Electronic Transmission control for double‐plate clutch transmission)
• VGS4NAG2 (Fully Integrated transmission control)
• SCR ‐ Selective Catalytic Reduction
• TC166‐Transfer case
• MED177 AMG
• ME2.7.2 (Motor electronics)
Body:
• AB (Air Bag)
• ATA (Anti‐Theft Alarm)
• PTS (Parktronic System)
• EIS (Electronic Ignition Switch)
• SEM (Security Module)
• PSE (Pneumatic System Equipment)
• OCP (Overhead Control Panel)
• LCP (Lower Control Panel)
• SAM (Signal acquisition and actuation module)
• SAM‐FL (Front left signal acquisition and actuation module)
• SAM‐FR (Front right signal acquisition and actuation module)
• SAM‐F (Signal acquisition and actuation module front)
• UCP (Upper Control Panel)
• HRA (Headlamp Range Adjustment)
• HRA‐FL (Headlamp Range Adjustment, Front Left)
• AAM (All Activity Module)
• EAM (Extended Activity Module)
• KG (Keyless Go)
• RFL (Radio Frequency Locking)
• VR (Vario Roof)
• SVMCM /MSS (Special Vehicle Multifunction Control Module)
• WSP(immobilizer)
• AHE (Trailer Recognition)
• RST (Roadster Soft‐Top)
• RevETR‐LF (Left front reversible emergency tensioning retractor)
• RevETR‐RF (Right front reversible emergency tensioning retractor)
• CGW(Central gateway)
• PSD (Panoramic sliding roof)
• Dr‐side SAM (Driver signal acquisition and actuation module)
• REAR SAM (Rear signal acquisition and actuation module)
• SG‐FOND (Rear control unit)
• WSS (Weight sensing system)
• XALWA‐L (Xenon headlamp,left)
• XALWA‐R (Xenon headlamp,right)
• SDS (System diagnosis)
• COU (Central operating unit)
• CRN (Center roof node)
• HBF (Rear control panel)
• VBF (Front control panel)
• BNS (Vehicle power supply control module)
• SG‐DDW
• BCG‐Remote control(Rear control field)
• SRS (Supplemental restraint system)
• EZS (Electronic ignition lock)
• DSI (DIRECT SELECT interface)
• VDS‐Vario roof control
• MSC‐MAGIC SKY CONTROL

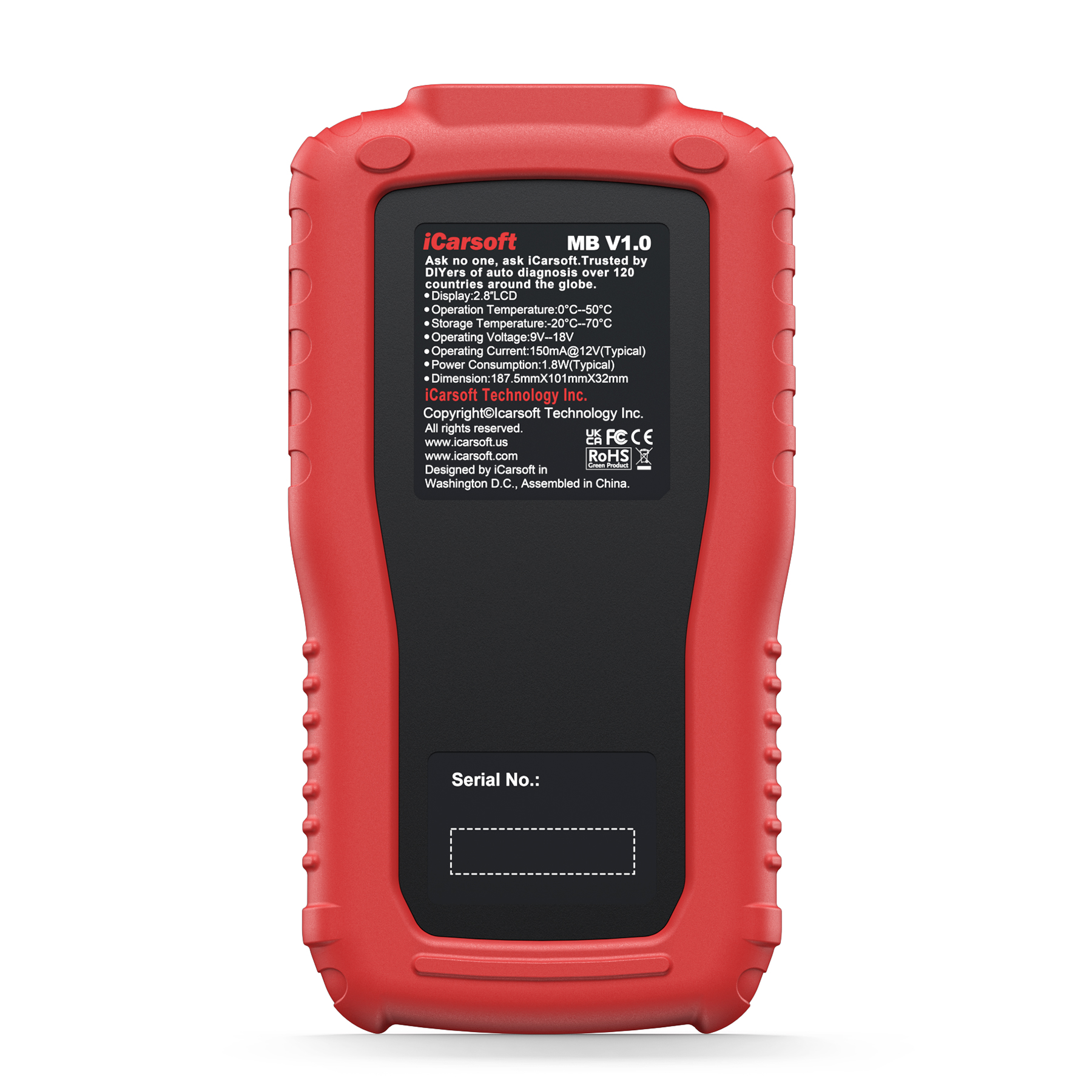

Specifications
Display: 2.8″TFT LCD, 320*240 Pixels
Operation Temperature: 0°C ~ 50°C
Storage Temperature: -20°C ~ 70°C
Operating Voltage: 9 ~ 18V
Operating Current: 150mA@12V (Typical)
Power Consumption: 1.8W(Typical)
Dimension: 187.5*101*32 mm (L x W x H)

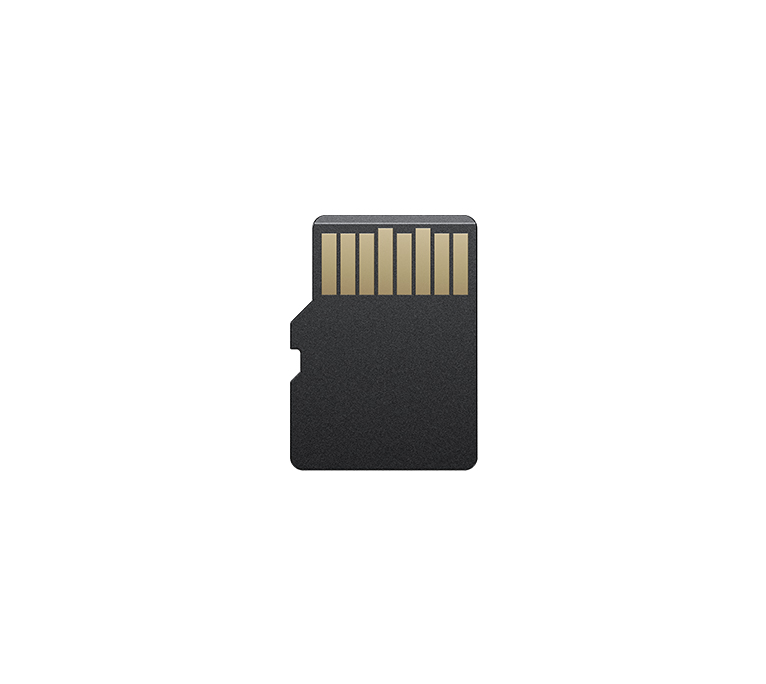

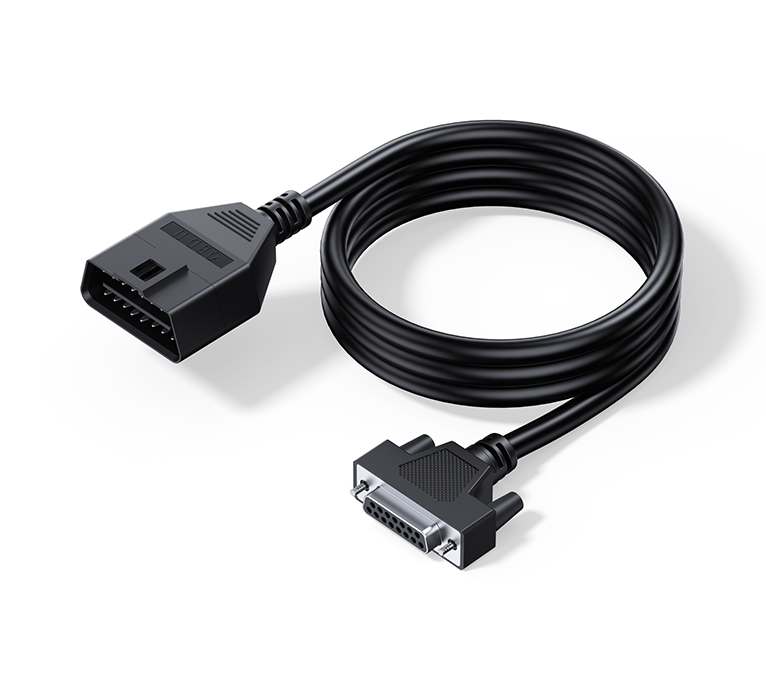

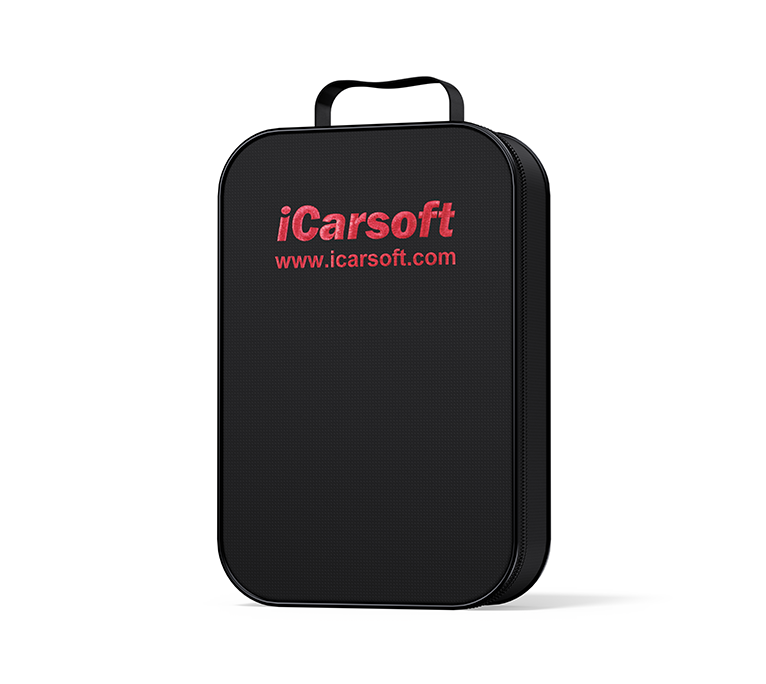

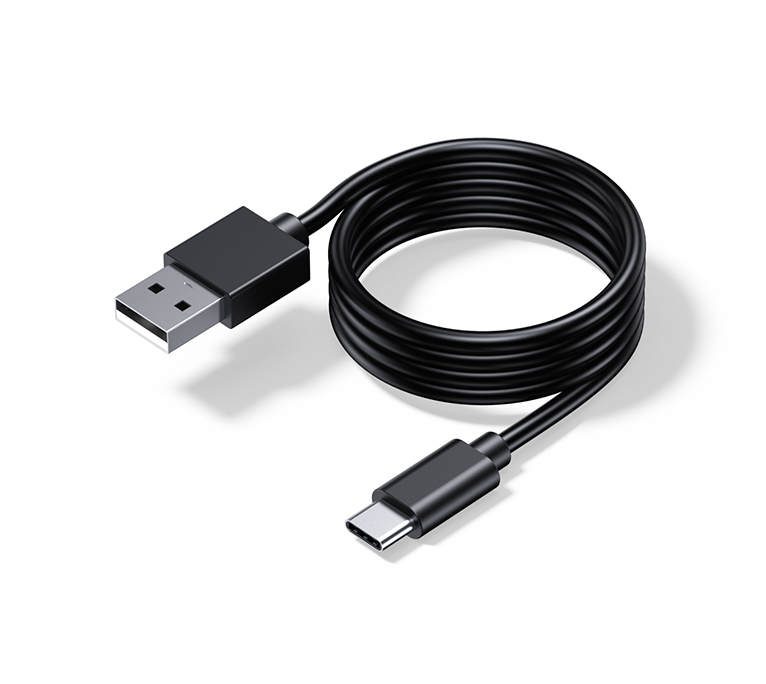

Contents

four colors for Choice
