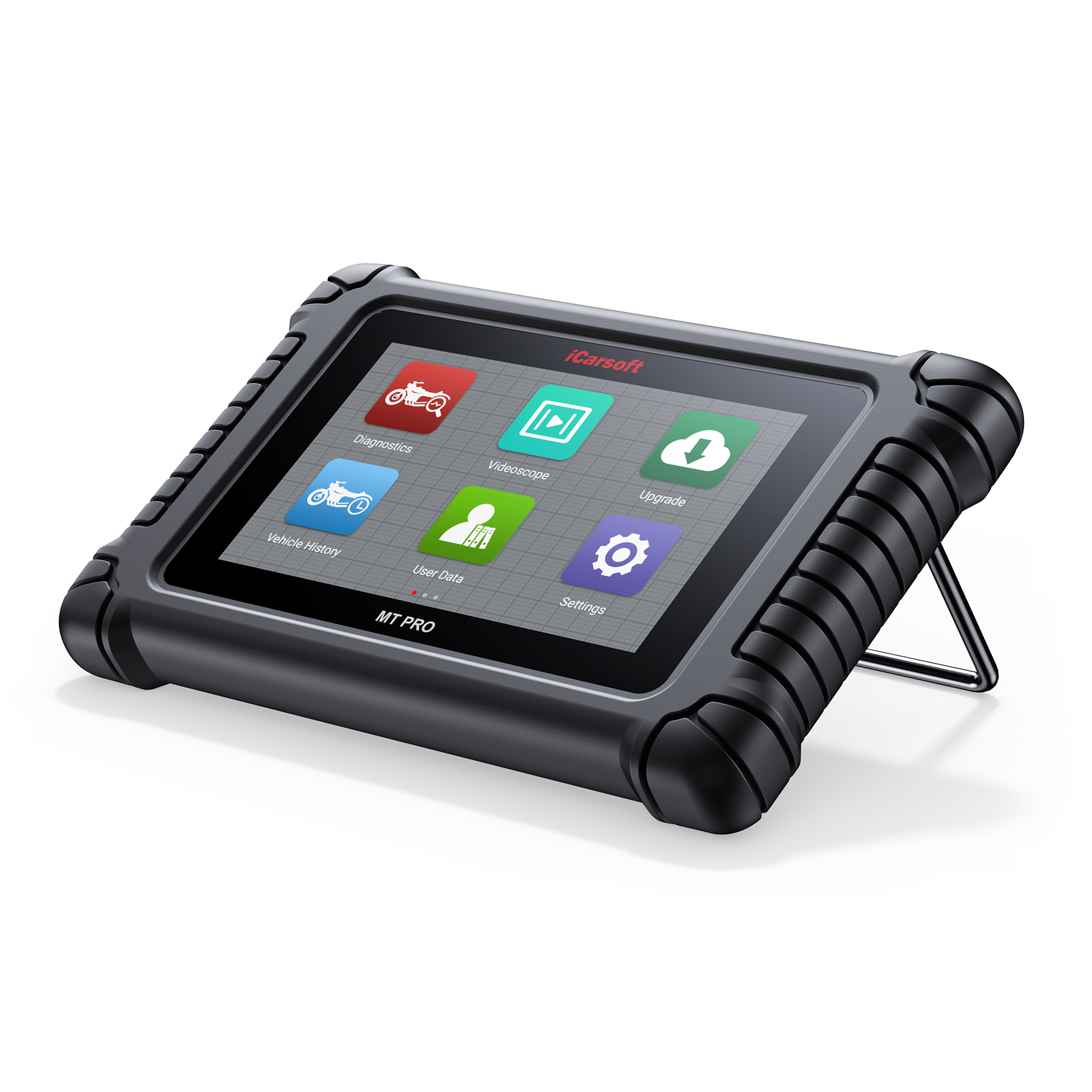

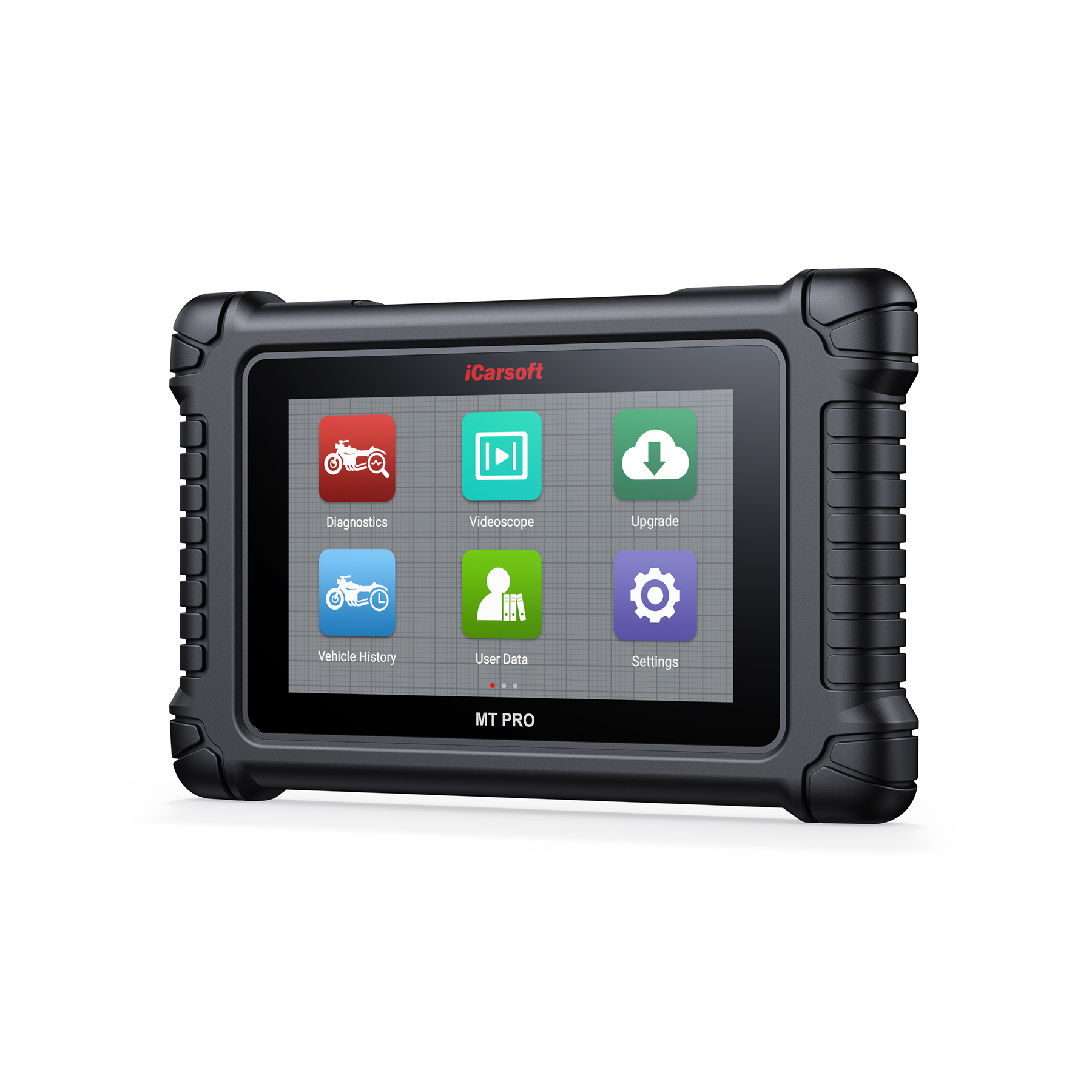

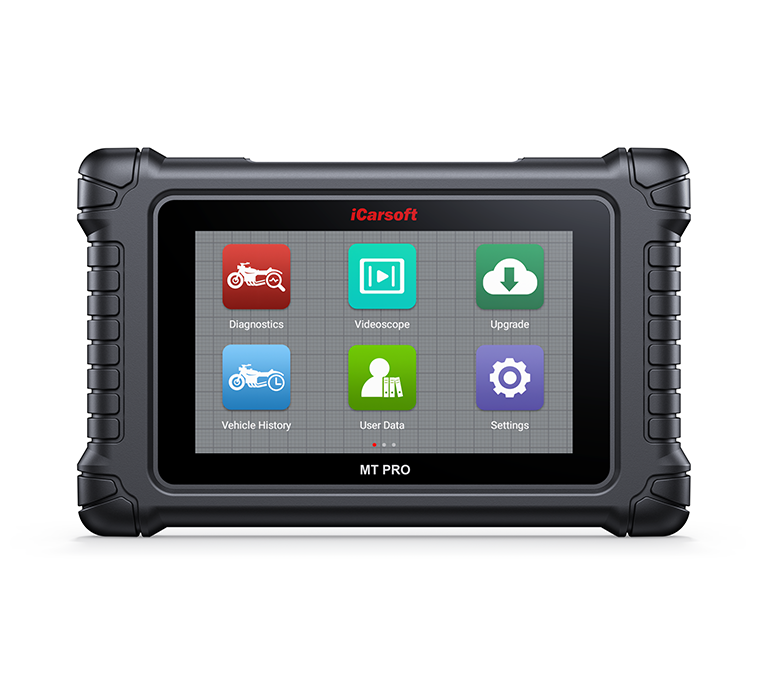

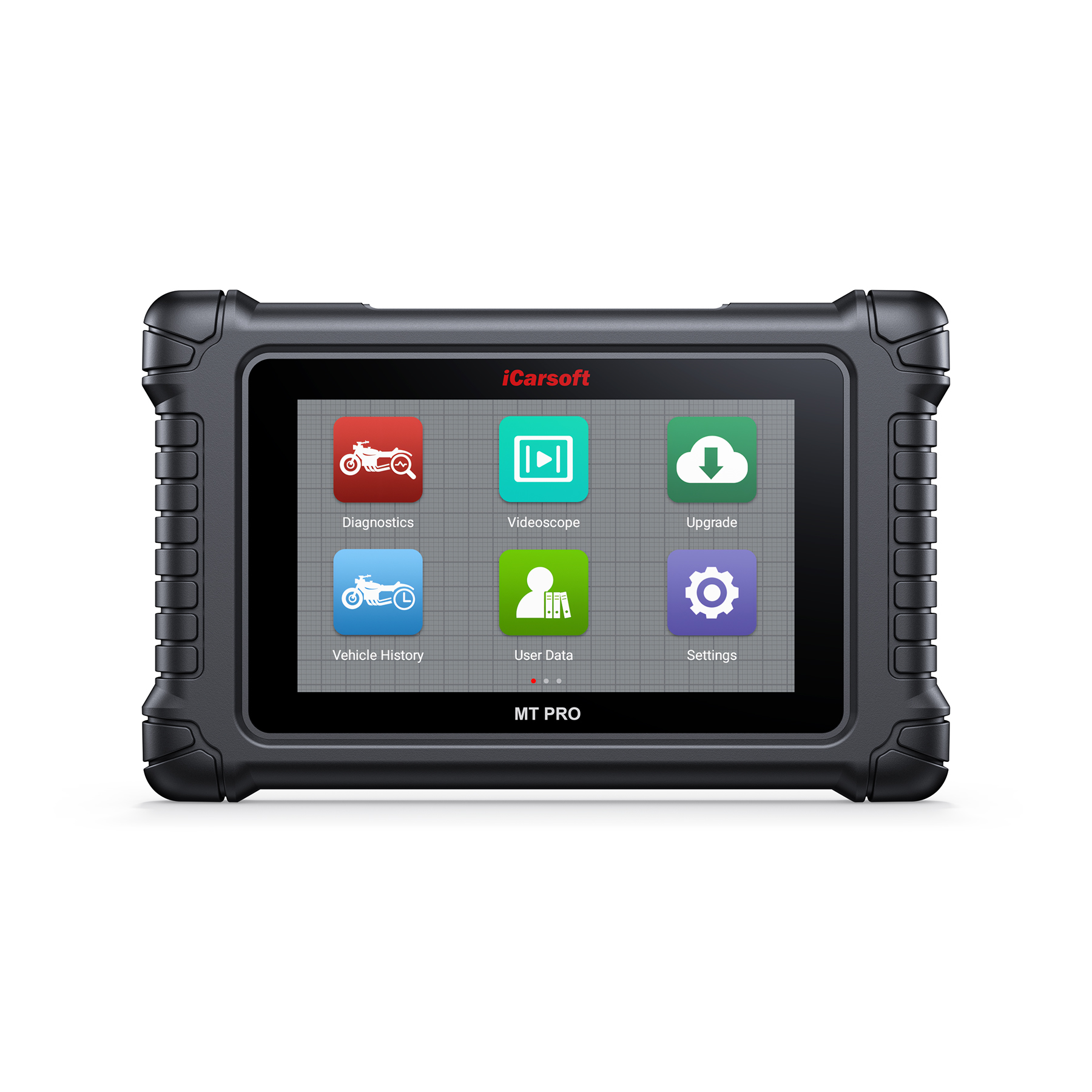

iCarsoft Professional Multi-Systems Motorcycle Diagnostic tool
MT PRO for 100+ motorcycle brands.
When it comes to ultra-portability, MT PRO is your perfect companion. iCarsoft MT PRO is the latest intelligent multi-brand motorcycle diagnostic tool designed by iCarsoft in 2025. Installed with a fast quad-core processor, MT PRO offers maximum convenience and swift diagnosis. The intuitive user screen makes using the device effortless through a 7-inch LCD touchscreen that displays at 1024 x 600 quality. Together with the ability to quickly read and clear DTCs for all available modules of the majority of the makes and models on the market, MT PRO provides you with superior diagnostic functions. The MT PRO is a powerful diagnostic scan tool specially made for workshop professionals. General diagnostic functions as following:
Support OBDII Ten Modes of Operation.
Read Live Data.
Full ECU Diagnosis.
Easy To Use with Silicone Keys.
Battery Test.
Auto identify technology can automatically identify model and year information in no time.
Actuation Test / Bi-directory Test is used to access vehicle-specific subsystem and component tests.
Support Freeze Frame of Fault Code functions.
Strong Hardware and Software makes the MT PRO easy and intuitive operation:

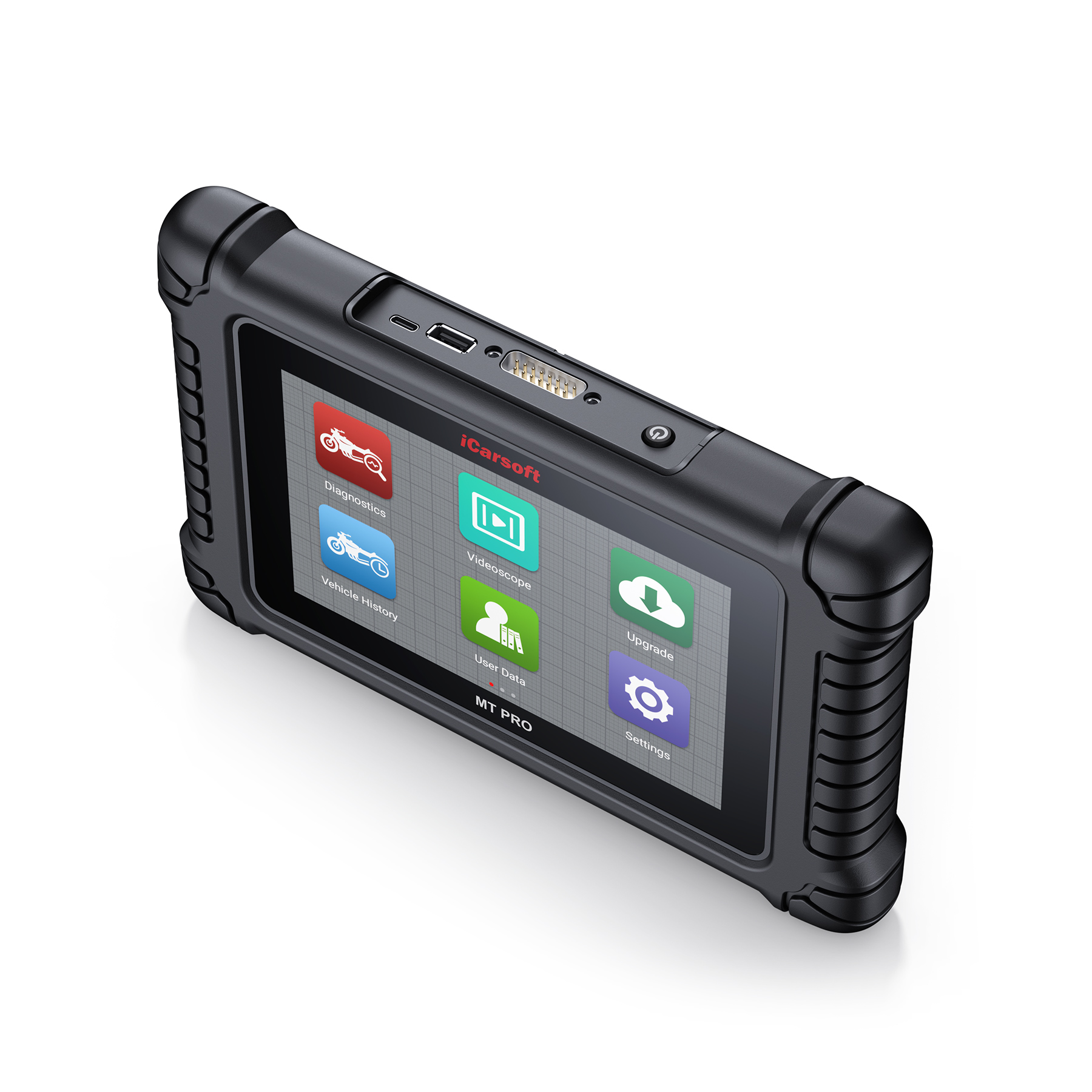

● The MT PRO comes with 7-inch LCD touchscreen and 1GB(RAM) + 32GB(ROM).
● 5000mAh large battery for more than 5 hours continued use.
● Fast AutoVIN Identify: Automatically retrieves detailed vehicle information, eliminating manual entry and saving time. It improves accuracy, reduces human errors, and enhances user experience, making diagnostics faster and more reliable.
● Multi-language: English, Deutsch, French, Dutch, Spanish, Czech, Swedish
Russian, Hungarian, Norwegian, Portuguese, Italian, Polish, Danish and Finnish.
MT PRO motorcycle coverage
For BMW Motorcycle, for KTM, for Ducati, for Benelli, for Piaggio, for Aprilia, for Vespa, for Moto Guzzi, for Triumph, for Peugeot, for Harley, for Yamaha, for Kawasaki, for Honda, for Suzuki, for KYMCO, for Hartford, for PGO, for SYM, for Aeon, for Adiva.
Lifelong free online update
In contrast to other motorcycle scanner on the market that demand users to pay for updates, our MT PRO comes with most popular reset functions with lifetime free updates. Increasingly sophisticated software for better compatibility. And the MT PRO scan tool support Wi-fi and the users can update just with one click on the menu.
Actuation Test
The "Actuation Test" function accesses vehicle specific subsystem tests and performs component tests. The available test functions vary according to the manufacturer, year and model, and the menu will only show the available test options.
When performing the actuation test, the tester inputs the command to the ECU to drive the actuator. This test can monitor the operation of the actuator by reading the ECU data of the engine. For example, by repeatedly switching the two working states of the solenoid valve, relay and switch, it can determine whether the system or components are working normally.

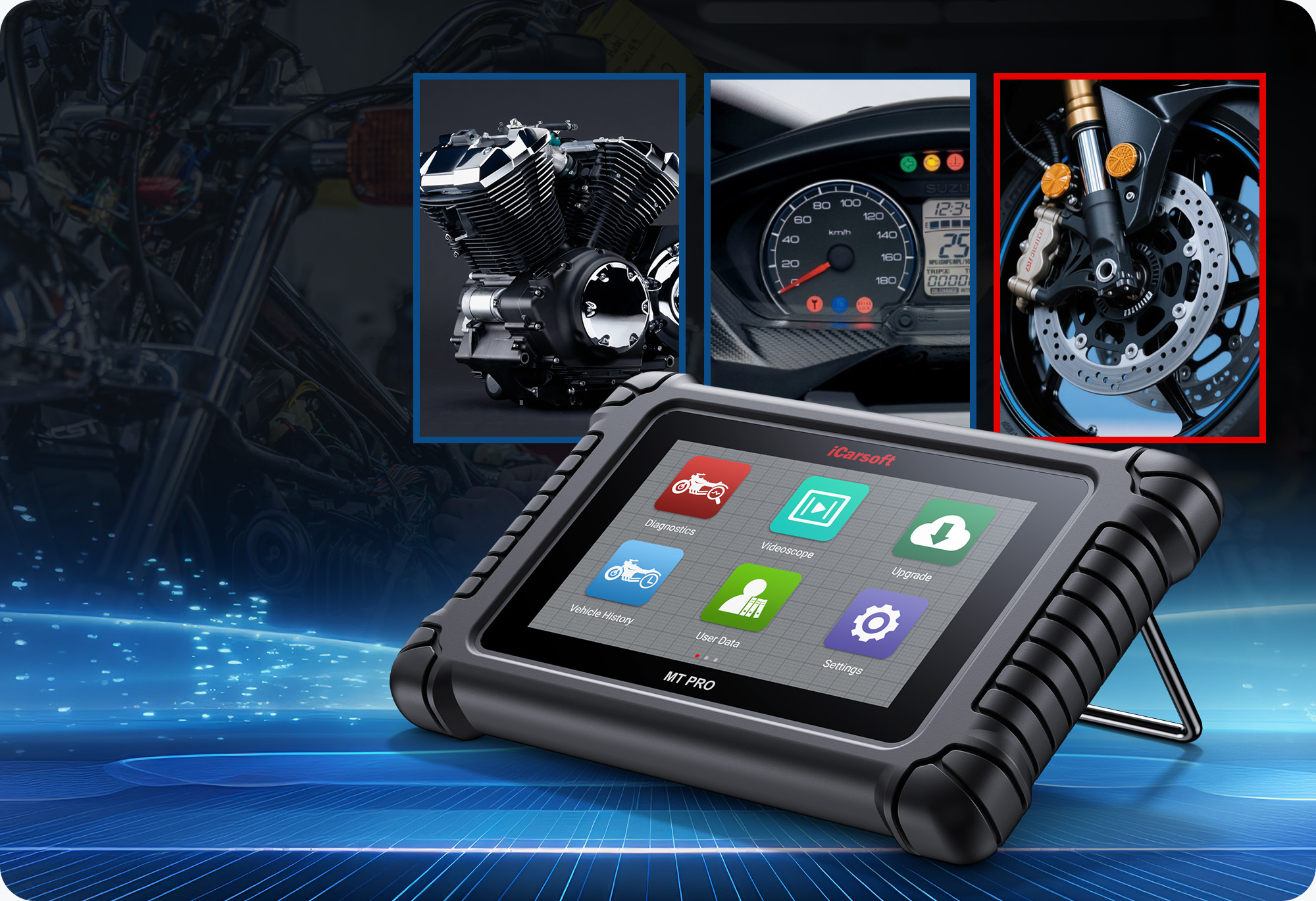

The MT PRO supports all systems diagnose.
● Diagnose the Motorcycle Engine System: Many motorcycle riders are always confused by the flashing engine check light, which appears due to various problems, such as the engine injector should be cleaned or the engine combustion is not good. This engine tester will help you find the cause and disable the check engine light when the problem is solved.
● Diagnose the Motorcycle ABS System: ABS on a motorcycle prevents your motorcycle brakes from locking and your tires from skidding. Possible reasons for the motorcycle ABS light to come on include a failure of the wheel speed sensor, a failure of the ABS circuit, a failure of the ABS pump and the pressure control solenoid valve. The ABS light comes on to indicate that the ABS system is malfunctioning. When the ABS light comes on, the MT PRO can locate and fix the code in time. This saves you the trouble of taking the motorcycle to a workshop.
● Diagnose all the Motorcycle Electronic System: As the device is designed for motorcycle’s all system diagnosis, in addition to engine, ABS, it can also diagnose the chassis, Instrument panel, speedometer, VSS, left/right side handlebar electric switch, meter, suspension, traction control and exhaust valve to read/clear fault codes and display live data.
Diagnose more system...
5 Hot Service Functions covering your daily maintenance needs.
● Oil Reset: Support service lamp reset.
● Electronic Throttle Control: Reset of the throttle valve adaptation values while clear or replace the throttle valve, As the same time we need to reset the accelerator grip adaptation values. Then start the engine and let the positions of the throttle valve and accelerator handle self-learn to restore the best matching values.
● ABS Bleeding: the ABS bleeding function to bleed the brake system to restore ABS brake sensitivity.
● Electronic suspension: In the following cases: before delivery (after the factory assembly), after replacing the control module, after repairs to the ESA system. (For example, after replacing the spring/shock absorber module), this function needs to be executed for suspension and calibration.
● Engine Idle: Adjust the engine speed at idle speed.
**The service functions vary by motorcycle’s specifics. Contact us anytime for more details.
Real time graphic live data
The MT PRO motorcycle scan tool supports live data stream. This motorbike scanner also gives you the details of the fault code so you don’t have to search it online. And you can simply select the code to have its definition in the Diagnostic Trouble Code (DTC) lookup library.
**The live data functions vary by vehicle's specifics. Contact us anytime for more details.
Full OBD2 test modes to fix most of emission issues
Full OBD2 Scanner contains all 10 modes and easily determines the cause of the check engine light. Read and Erase Code, On-Board Monitor Test (Mode 6), EVAP Test (Mode 8), O2 Sensor Test, Live Data, Freeze Frame Data, DTC Lookup, etc. iCarsoft MT PRO motorcycle reader supports one-click check, turns off the annoying Check Engine Light, and gets your ride back on the road.
Support History and Report printing.
User can quickly access previously tested vehicle systems, save, share, and print diagnostic reports.
This scan tool gives you access to the “Feedback” function which provides customized repair suggestions from our certified professionals. Moreover, you can print out the diagnostic data on paper for future reference. Simply hook it up to a Windows PC.
Product Specifications:
Operating System Android 8.1.0
Processor Quad Core 1.3 GHz
Memory 32GB
Display 7-inch LCD capacitive touchscreen with 1024x600 resolution
Connectivity

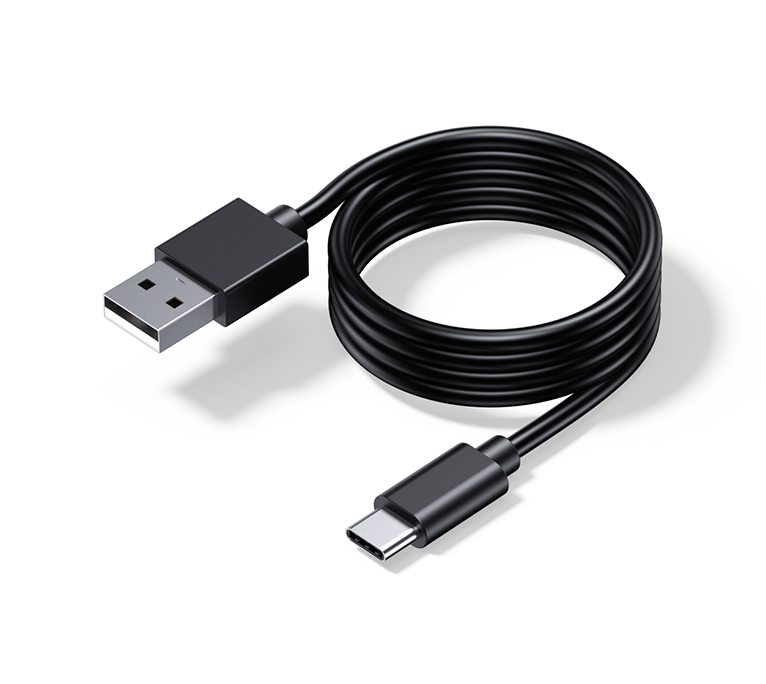

● USB 2.0
● Wi-Fi (2.4GHz)
● Bluetooth
● OBDII
Audio Input/ Output:
● Input: N/A
● Output: Buzzer & Speaker
Power and Battery
● OBD DLC Voltage Range:9-18V
● 3.7V/5000mAh lithium-polymer battery

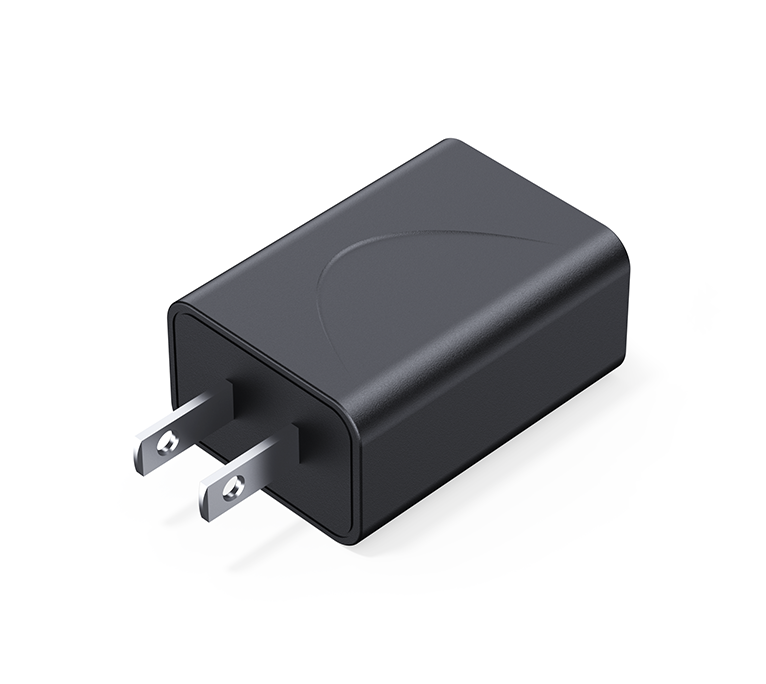

● Charges via 5V DC power supply
Tested Battery Life Around 5 hours of continuous use
Battery Charging Input 5V / 2A
Power Consumption 5000mA (LCD on with default brightness, Wi-Fi on) @3.7 V
Operating Temp. 0 to 40°C (32 to 104°F)
Storage Temp. -20 to 70°C (-4 to 158°F)
Operating Humidity 5% - 95% non-condensing
Dimensions (W x H x D) 252mm X 160mm X 34.4mm
(9.92inch X 6.3inch X 1.35inch)
Net Weight ≈750g
Supported Automotive Protocols ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN), SAE J2610,GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6
