Display: 2.8″TFT LCD, 320*240 Pixels
Operation Temperature: 0°C ~ 50°C
Storage Temperature: -20°C ~ 70°C
Operating Voltage: 9 ~ 18V
Operating Current: 150mA@12V (Typical)
Power Consumption: 1.8W(Typical)
Dimension: 187.5*101*32 mm (L x W x H)

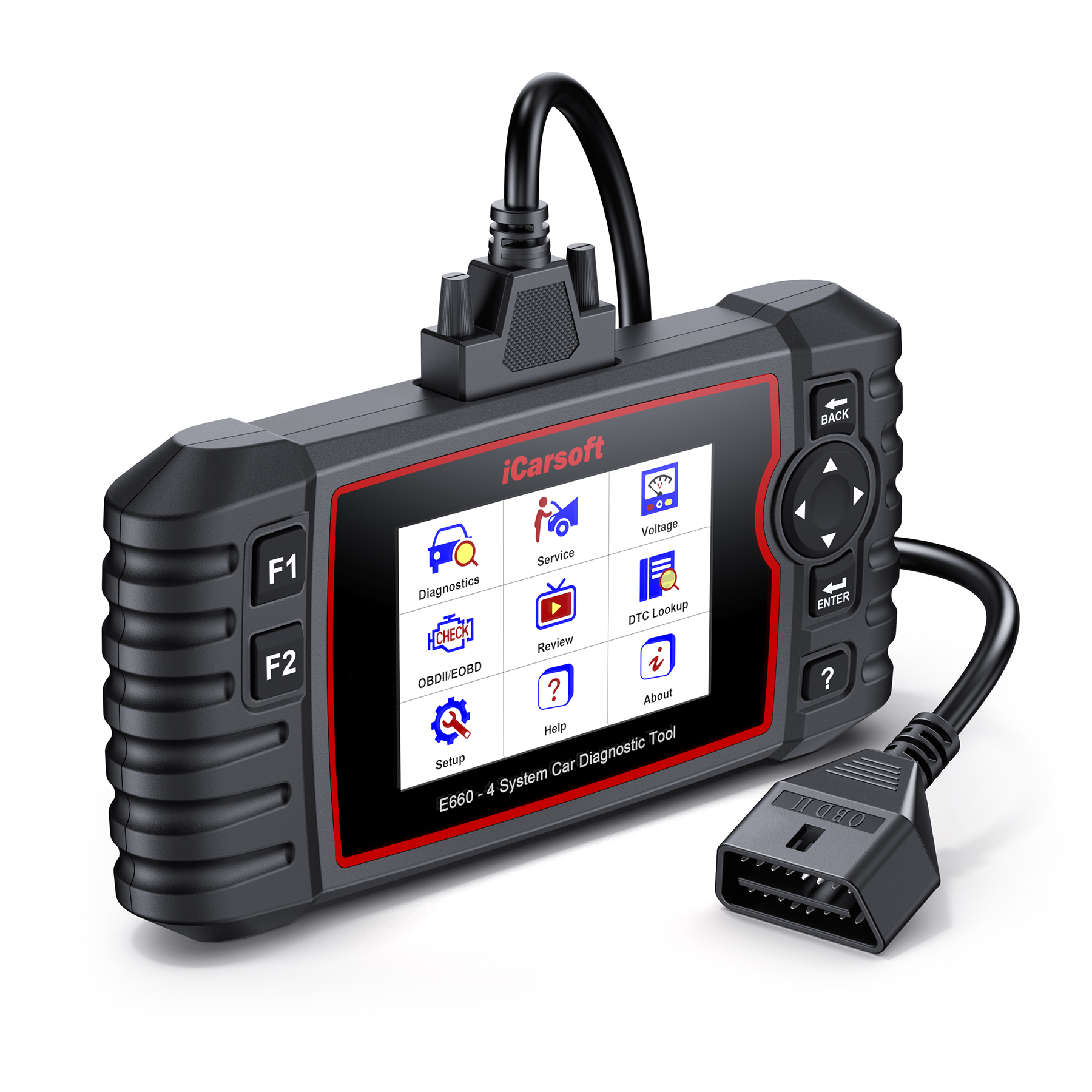

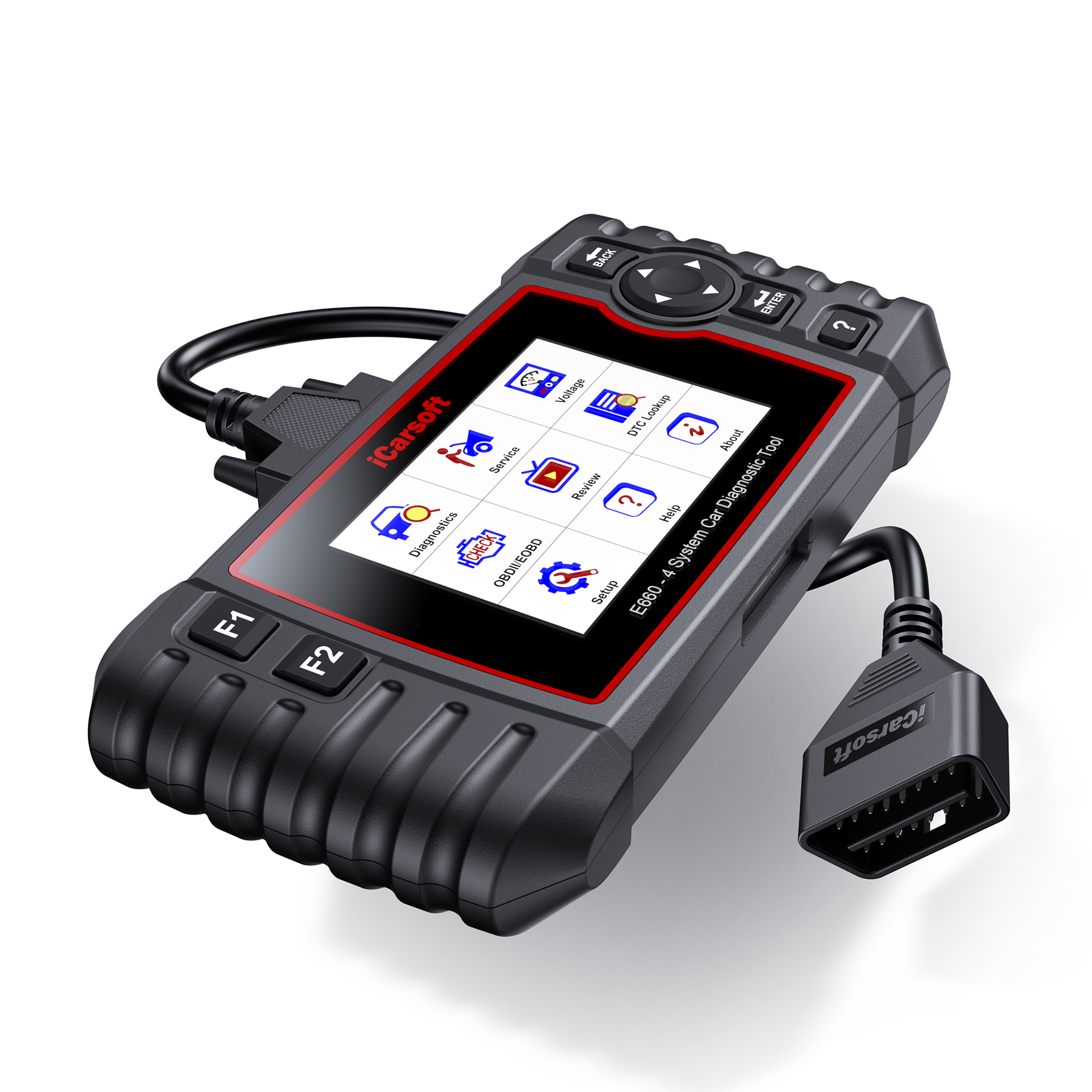

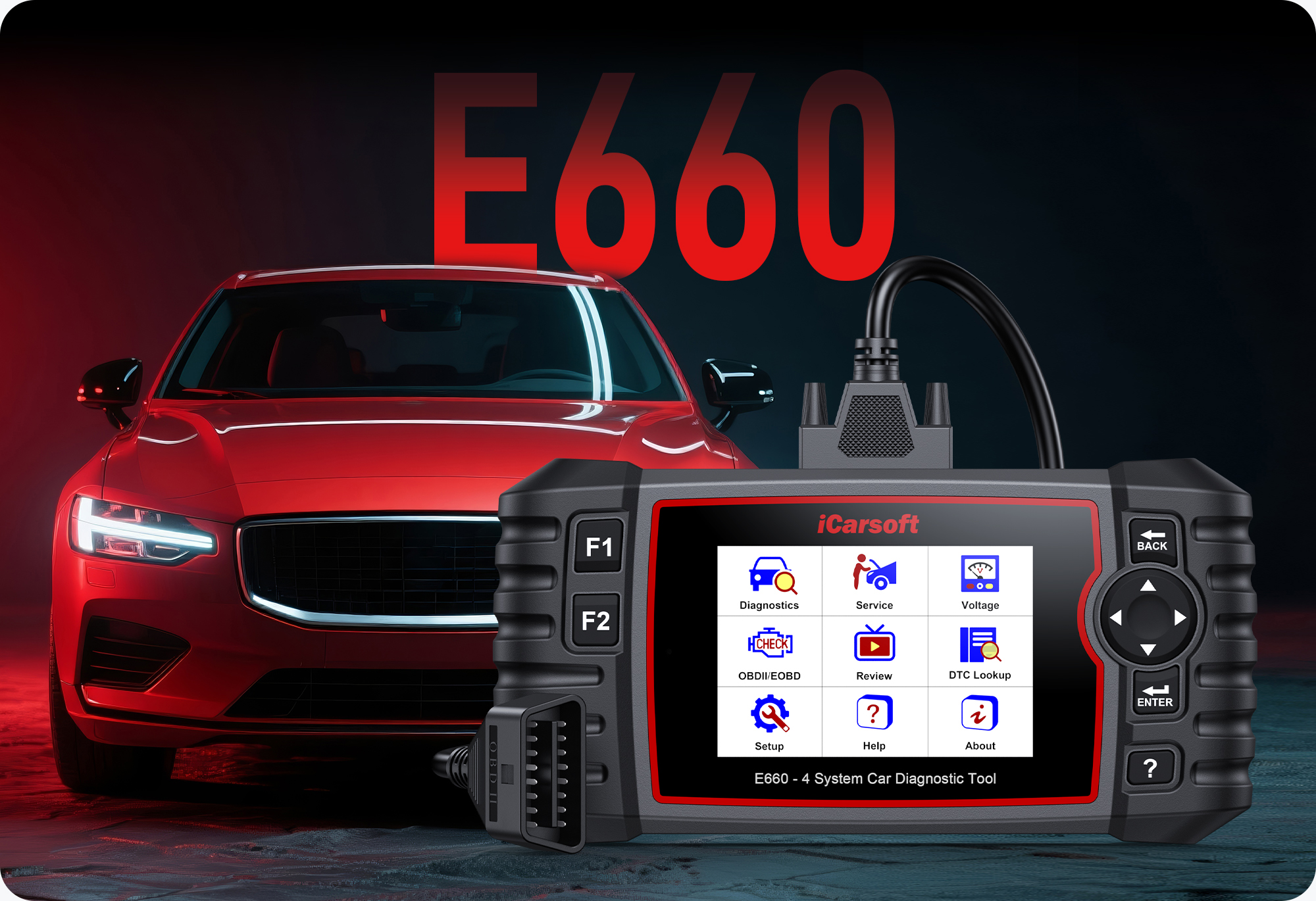

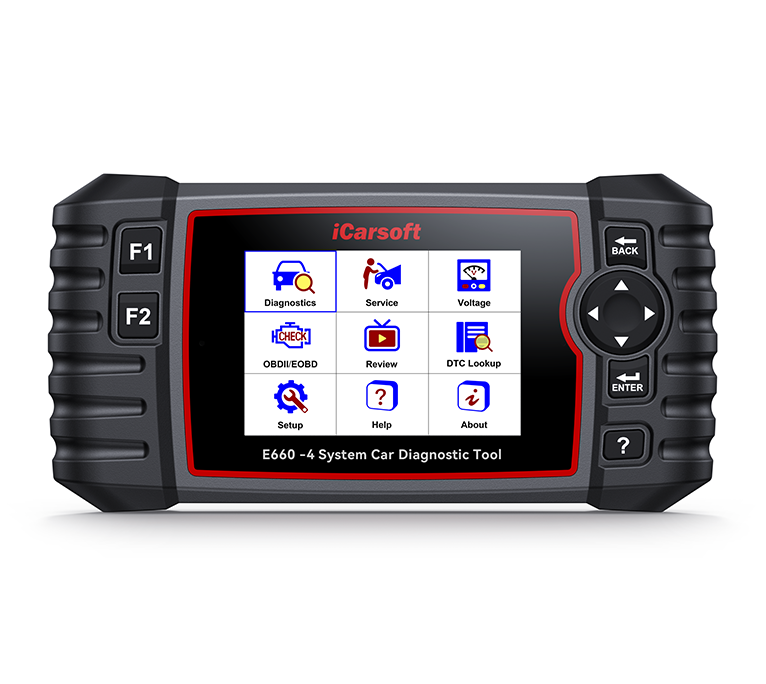

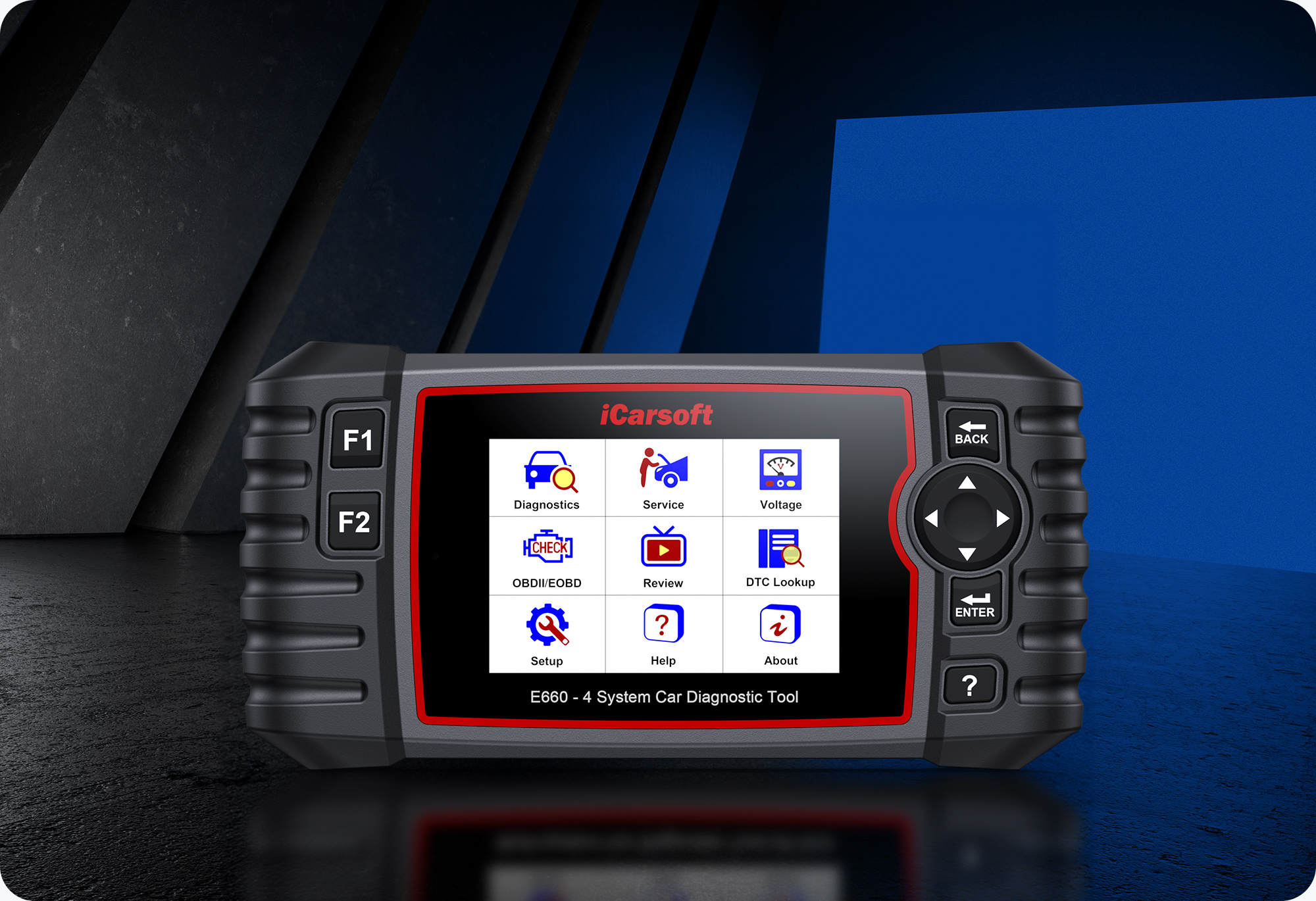

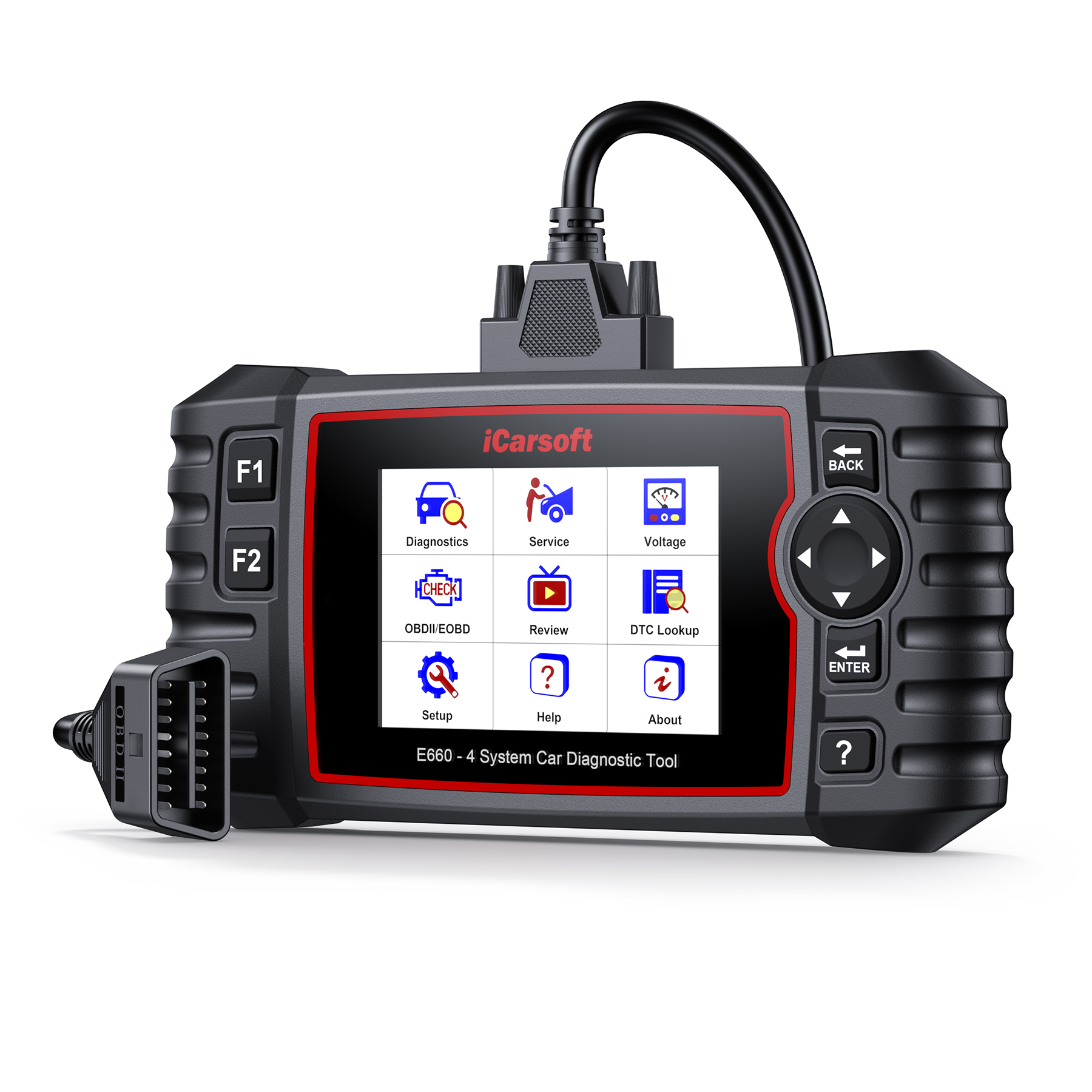

E660 is a Professional and powerful vehicle fault diagnosis tool for ABS+SRS+SAS+EPB+OBD II developed by iCarsoft Technology Inc. With a 4.0" TFT LCD and unique diagnostic software, it features full ECU diagnosis of single vehicle brand and test modes mainly include: CANBUS, ISO9141, KWP2000, and J1850 etc. It enables technicians to accurately diagnose complex problems.

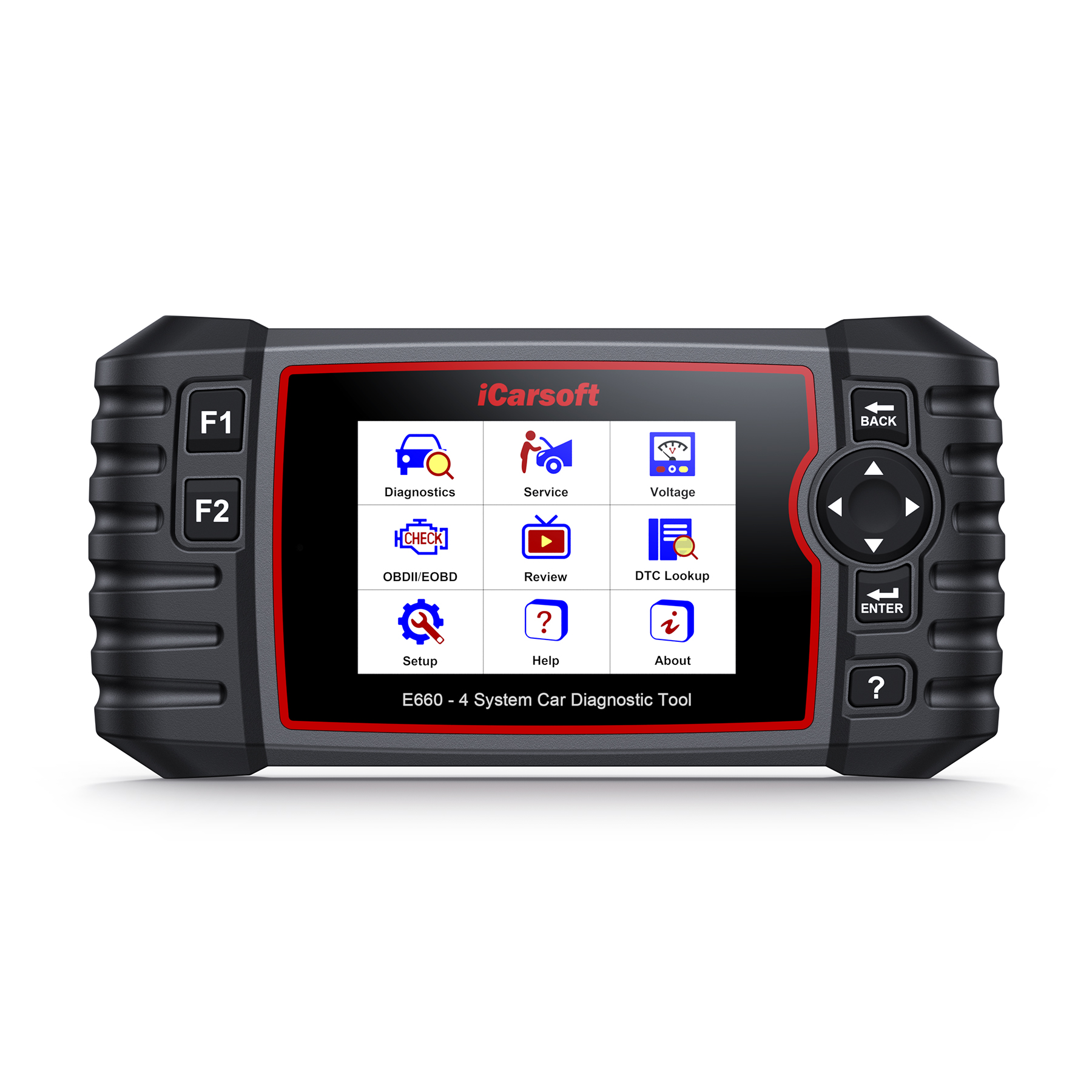

① LCD DISPLAY--Indicates test results.
② BACK BUTTON--Returns to previous menu.
③ UP BUTTON--Moves cursor up for selection.
④ DOWN BUTTON--Moves cursor down for seiection.
⑤ LEFT BUTTON--Moves cursor up for selection.
⑥ RIGHT BUTTON--Moves cursor down for selection.
⑦ ENTER BUTTON--Confirms a selection(or action)from a menu list.
⑧ FUNCTION BUTTON--In case of special use.
⑨ FUNCTION BUTTON--In case of special use.
⑩ FUNCTION BUTTON--In case of special use.
⑪ HELP BUTTON--Shows help information for test results or user operation.
selected makes with OBDII-16 DLC. It can do it all-reads and clears trouble codes on engine,
ABS and Airbag.
for replacement and initialization.
SAS while steering part replacement.
OBDII function 1. Read Codes
2. Erase Codes
3. I/M Readiness -- I/M Readiness indicate whether or not the various emissions-related systems on the vehicle are operating properly and are ready for Inspection and Maintenance testing. 4. DataStream
5. Freeze Frame -- When an emission-related fault occurs, certain vehicle conditions are recorded by the on-board computer. This information is referred to as freeze
frame data. Freeze Data is a snapshot of the operating conditions at the time of an emission-related fault.
6. O2 Sensor Test -- This option allows retrieval and viewing of O2 sensor test results for most recently performed tests from the vehicle's on-board computer.
7. On-Board Monitoring -- This function can be utilized to read the results of on-board diagnostic monitoring tests for specific components/systems.
8. Evap System Test -- The EVAP test function lets you initiate a leak test for the vehicle's EVAP system. Before using the system test function, refer to the vehicle's
service repair manual to determine the procedures necessary to stop the test.
9. Vehicle Information -- The option displays the vehicle identification number (VIN),the calibration verification number (CVN), and other information of the test vehicle.
10. Retrieve generic (P0, P2, P3, and U0), manufacturer specific (P1, P3, and U1) codes and pending codes
11.Turn off Check Engine Light (MIL), clear codes and reset monitors
12. Read live PCM DataStream
13. Support CAN (Controller Area Network) and all other
14.Multilingual menu and DTC definitions- English, Spanish, and German, etc.
15.Read pending DTCs
16.Read permanent DTCs
17. DTCs search
18. Supports most of the OBDII/EOBD test modes include: CAN, ISO9141, KWP2000, J1850 VPW and J1850 PWM.
19. Works on most of 2001 and later OBDII compliant PETROL European vehicles
20. Works on most of 2004 and later OBDII compliant DIESEL European vehicles
21. Works on most of 1996 and later OBDII compliant US and Asian vehicles
22. View & Graph Live Data in Color Graphing and blazing fast refresh rate for better graphing and live data readings.
23. Comprehensive Help, Including OBD Parameter, Mode Explanations & More

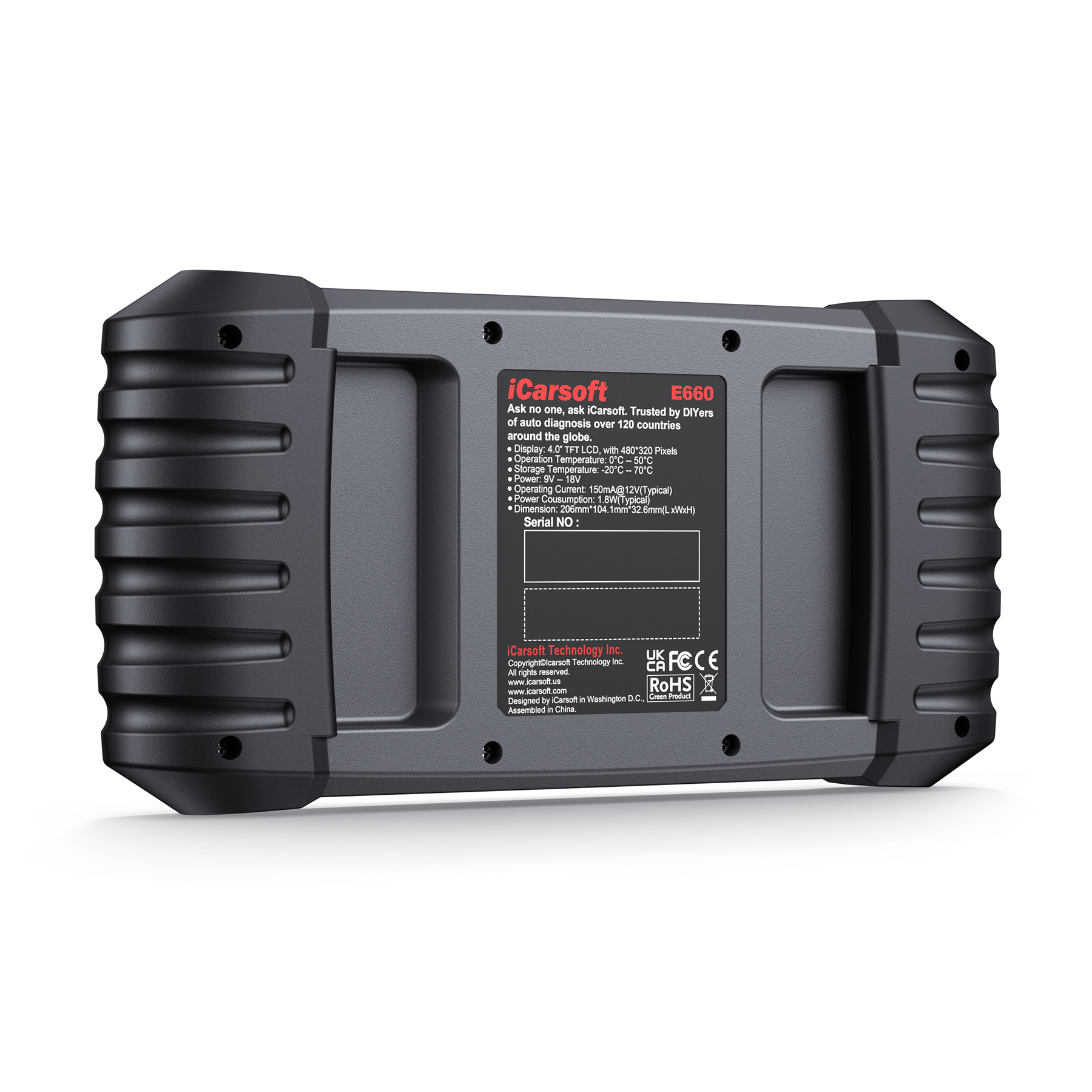

Display: 4.0″ TFT LCD, 480*320 Pixels
Power Consumption: 1.8W (Typical)
Dimension: 206*104.1*32.6 mm (L x W x H)
