TPMS Programming Tool and Sensors

<
>

TPMS S6000
TPMS Programming Tool and Sensors

PRODUCT FEATURES

For CR Eagle and TPMS V800.

Color
black
Warranty, update and support

One Year Warranty for Hardware (Except for human damage).
Lifetime free software update.
Lifetime technical support.

Inquiry

Product Details

Explore more product content

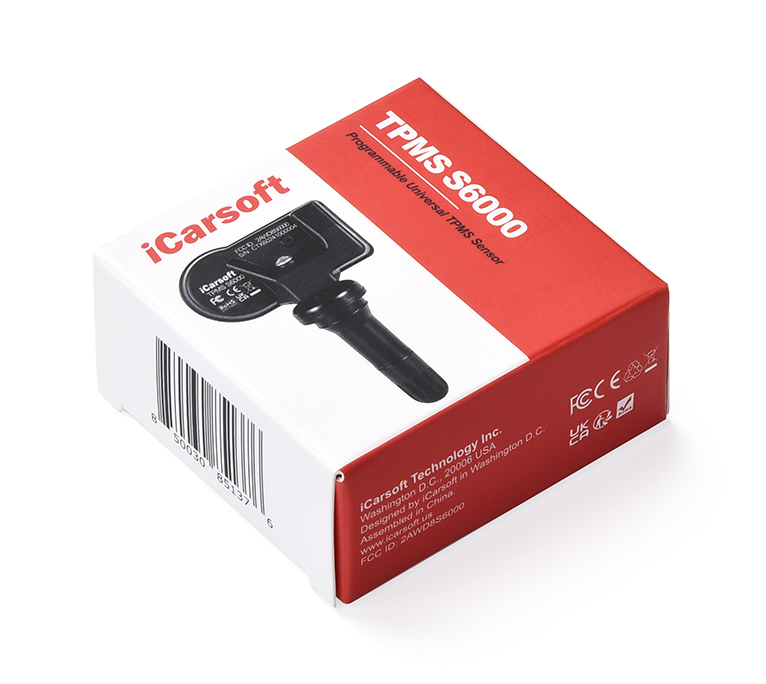

Packing List & Accessories

Shop accessories >
X
Contact us online

Please fill in this form so that we can contact us

Fields with * are mandatory field

Contact us via the following contact parties
  • Sales Center

    Mrs. Isabella Hussein
    E-mail: sales@icarsoft.us

  • Order Center

    Cynthia Brook
    E-mail: order@icarsoft.us

  • Tel:

    1(703)890-6001

  • Hours of operation

    Monday to Friday: 8:00 AM-18:00 PM

x

Which set is more suitable for me?

1. 28+ Reset Services: Performs over 28 reset and relearn services, including oil reset, SAS re-learn, EPB re-learn, ETC re-learn, TPMS re-learn, ABS bleeding, injector coding, and more for comprehensive vehicle servicing.
2. OE-Level All-System Diagnostics: Provides full OBD2 diagnostics for all systems, including engine, ABS, SAS, SRS, TPMS, TCM, fuel pump system, ESP, EPB, and suspension, allowing for complete system scans and code reading/clearing.
3. Bidirectional Control: Supports bidirectional control, enabling users to activate or control vehicle components (EVAP, ABS motor pump, windows, sunroof, etc.) to perform active tests and pinpoint faults.
4. Real-Time Data Recording & Graphing: Records vehicle data in real-time and provides live data viewing with graphical representation for easy monitoring and troubleshooting.
5. Auto VIN & Vehicle Identification: Automatically retrieves vehicle information and diagnostic history to streamline the diagnostic process for Mercedes Benz, Sprinter, and Smart vehicles.
6. Comprehensive OBD2 Services: Offers essential OBD2 functions such as reading/erasing codes, I/M readiness, freeze frame, O2 sensor tests, onboard monitoring, EVAP system tests, and battery tests.
7. Component Relearn Capability: Allows for relearning certain components after repairs or replacements, ensuring the proper functioning of new or serviced parts.
8. Multi-Language Support: Supports multiple languages, including English, German, Dutch, Spanish, and French, making it accessible to users from different regions.
Still have questions? Consult ICARSOFT experts.
X
<
>
X
Details
X

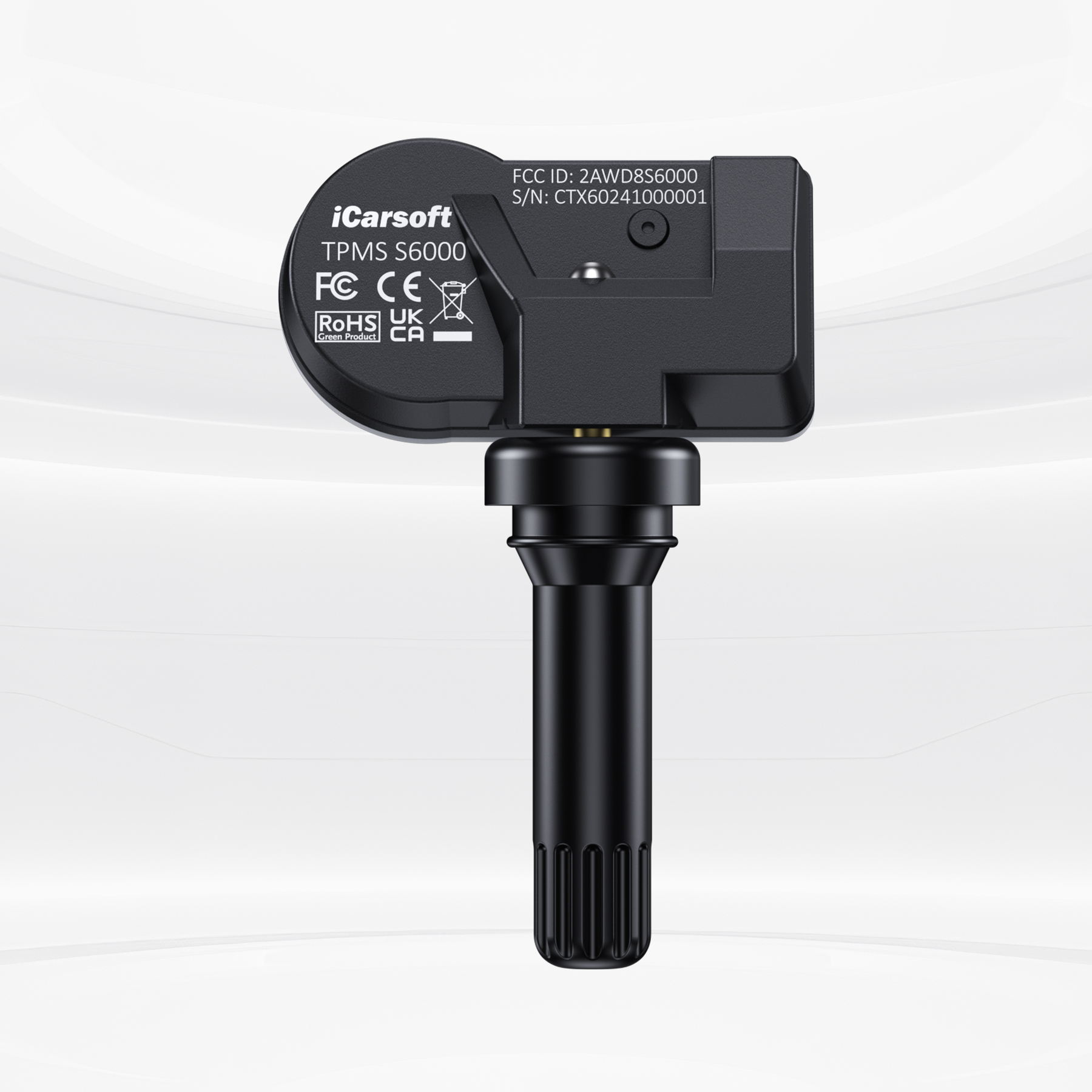

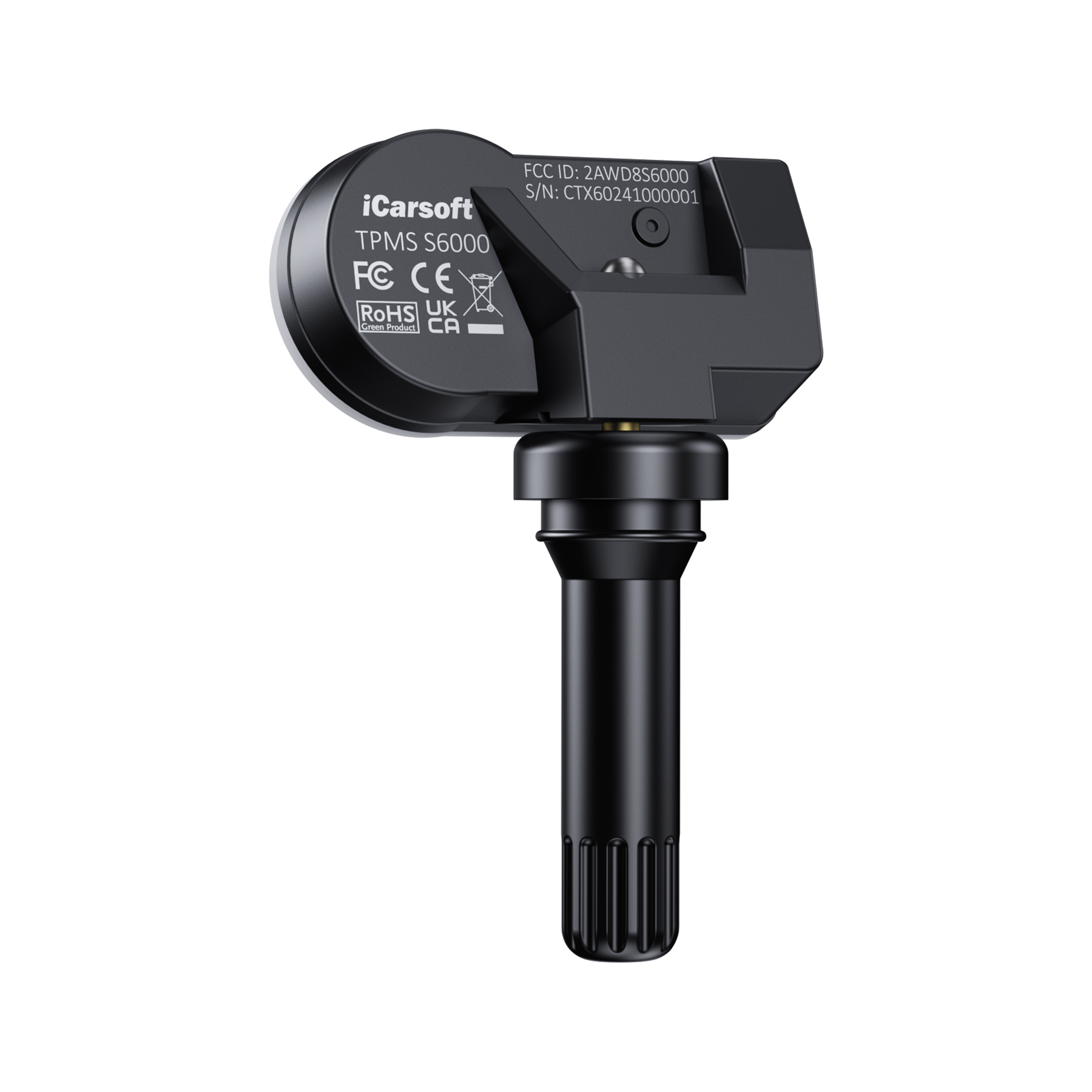

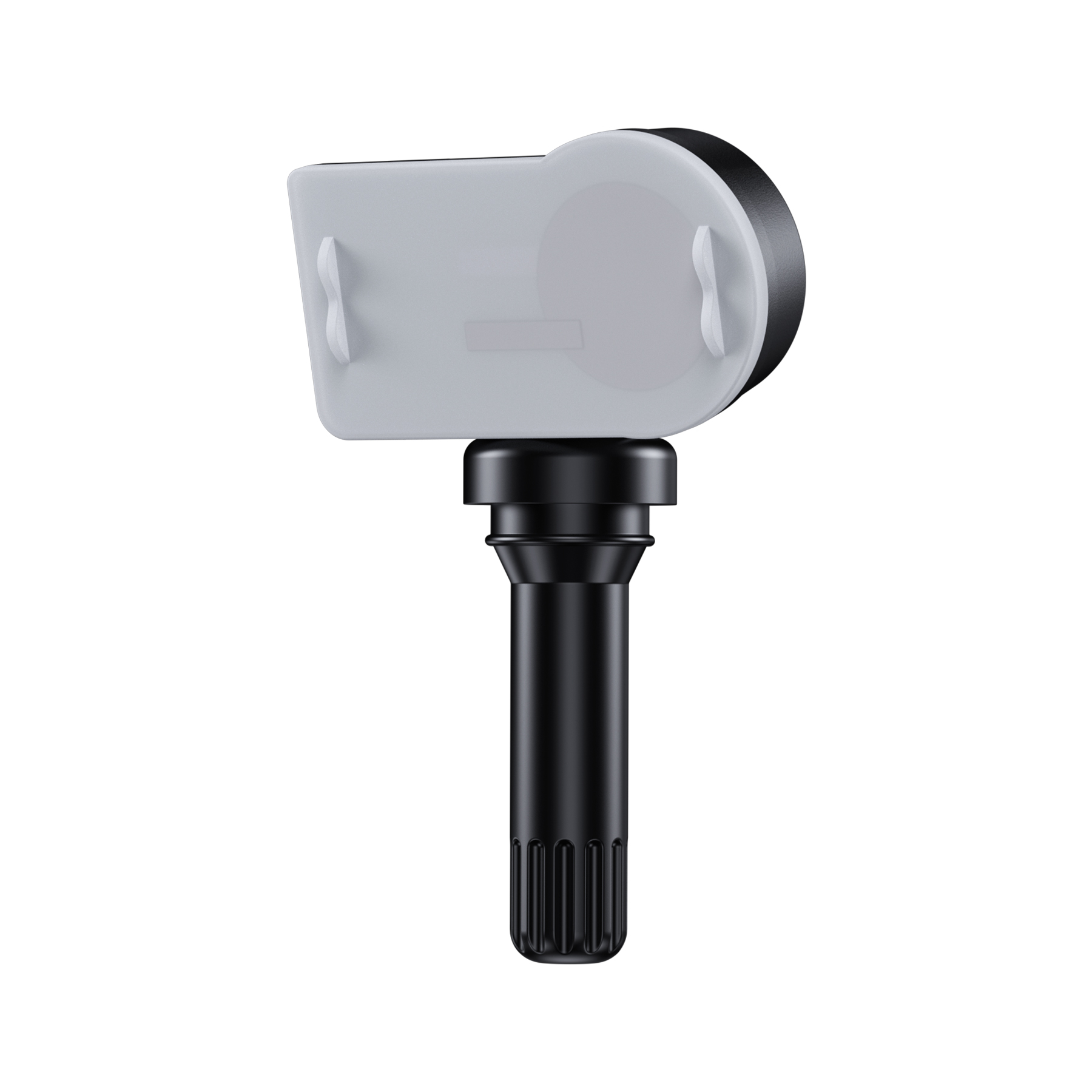

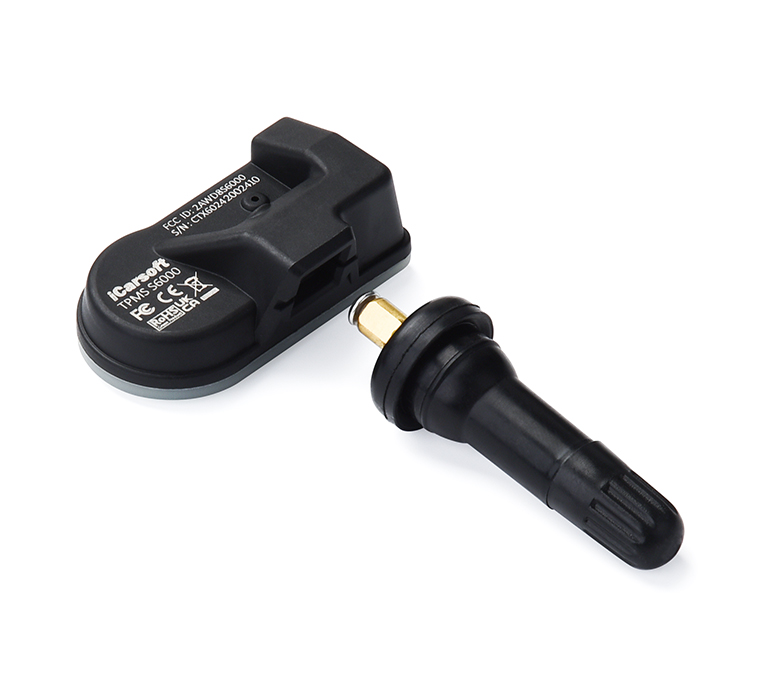

The manufacturer level sensor for nearly every TPMS-equipped vehicle
For CR Eagle and TPMS V800.
● Can replace the original sensor,supports unlimited programming.
easy to install.
● Pressure values are acourate to 0.1bar.
● Effectively prevent air leakage with strong stability.
Safety Instructions
Please read this manual carefully before using the product, be familiar with the structure of the product and master the installation method of the product. Before installation, please confirm that the product accessories are complete, the product can work normally, and there is no abnormal appearance and structure. During the installation process, the company shall strictly abide by the maintenance operation specifications and use professional maintenance tools. Otherwise, the company will not be responsible for any problems caused by the customer's illegal operation. If there is any problem in the process of using the product, it must be replaced or stopped immediately and tested by professional maintenance personnel or
after-sales service. After installing the product, be sure to re-measure the dynamic balance of the tire to eliminate safety risks.
Parameters
Storage Temperature: -10°C~50°C
Operation Temperature:-40°C~125°C
Pressure monitoring range:1-900Kpa
Maximum transmit power:≤-10.3dBm
Battery life:3-5years
Frequency:433.92MHz & 315MHz (For United States)
Pressure accuracy:±5Kpa
Temperature accuracy:±3°C
Weight:30.9g(With valve)
Dimensions:approx.73mm*48mm*20mm

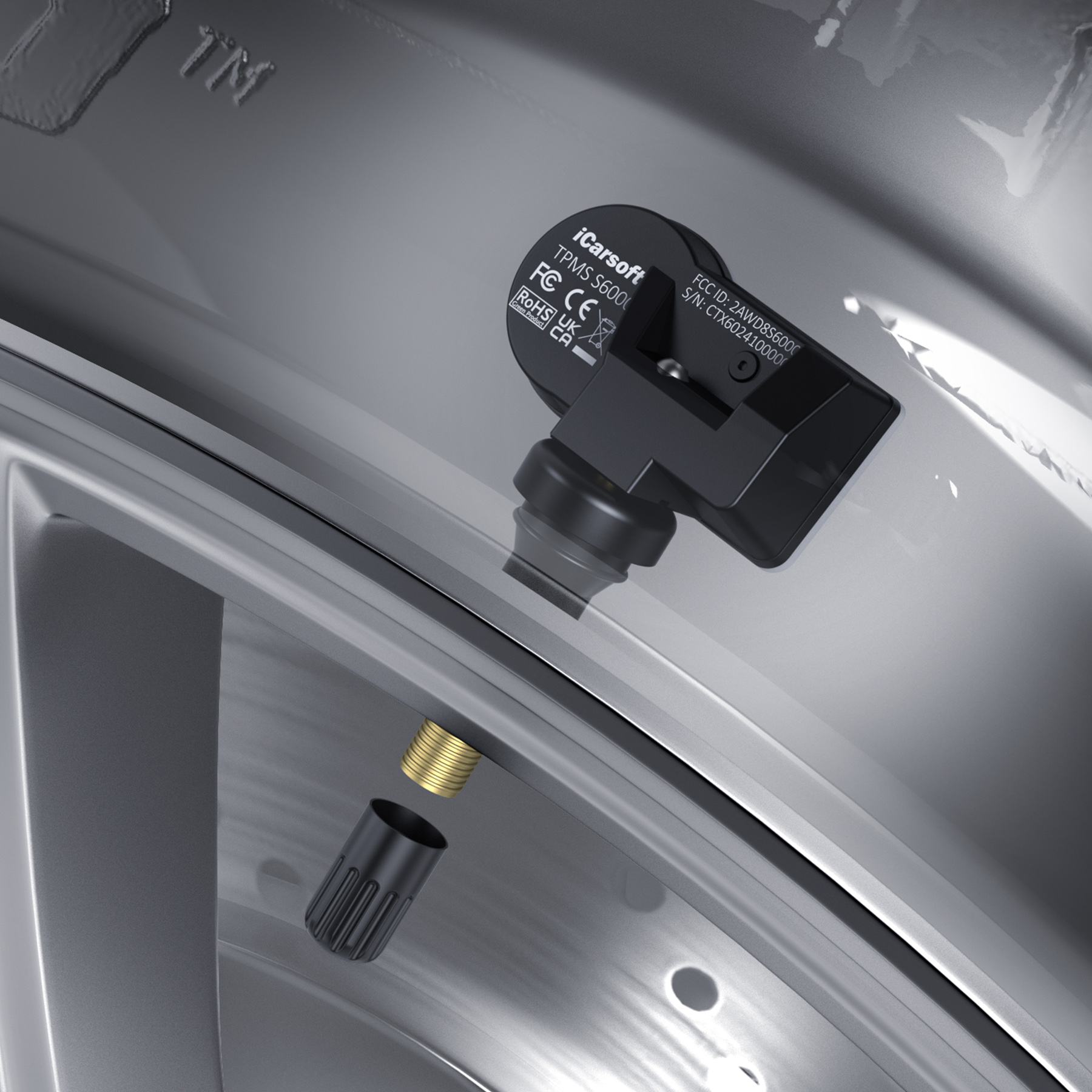

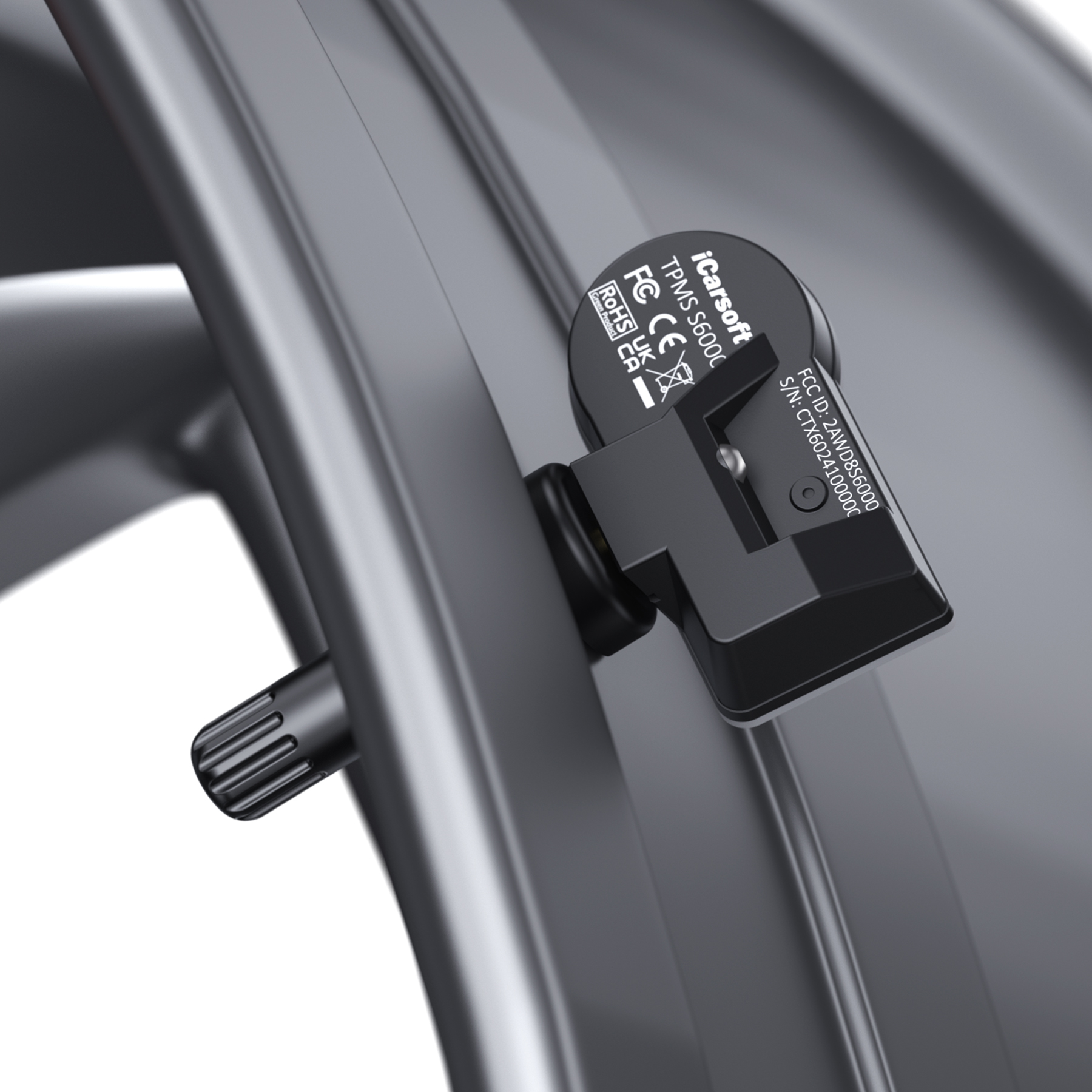

Installation Operation Steps
Step 1:
Please remove the tire cap.
Step 2:
Then install the tire sensor.
Step 3:
Inflate the tires.
Step 4:
Please put on the valve cover.
Step 5:
Test balance.
Step 6:
Adjust balance.
FCC Requirement
Any changes or modifications not expressly approved by the party responsible for compliance could void the user' s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.
The manufacturer level sensor for nearly every TPMS-equipped vehicle
For CR Eagle and TPMS V800.
● Can replace the original sensor,supports unlimited programming.
easy to install.
● Pressure values are acourate to 0.1bar.
● Effectively prevent air leakage with strong stability.
Safety Instructions
Please read this manual carefully before using the product, be familiar with the structure of the product and master the installation method of the product. Before installation, please confirm that the product accessories are complete, the product can work normally, and there is no abnormal appearance and structure. During the installation process, the company shall strictly abide by the maintenance operation specifications and use professional maintenance tools. Otherwise, the company will not be responsible for any problems caused by the customer's illegal operation. If there is any problem in the process of using the product, it must be replaced or stopped immediately and tested by professional maintenance personnel or
after-sales service. After installing the product, be sure to re-measure the dynamic balance of the tire to eliminate safety risks.
Parameters
Storage Temperature: -10°C~50°C
Operation Temperature:-40°C~125°C
Pressure monitoring range:1-900Kpa
Maximum transmit power:≤-10.3dBm
Battery life:3-5years
Frequency:433.92MHz & 315MHz (For United States)
Pressure accuracy:±5Kpa
Temperature accuracy:±3°C
Weight:30.9g(With valve)
Dimensions:approx.73mm*48mm*20mm
Installation Operation Steps
Step 1:
Please remove the tire cap.
Step 2:
Then install the tire sensor.
Step 3:
Inflate the tires.
Step 4:
Please put on the valve cover.
Step 5:
Test balance.
Step 6:
Adjust balance.
FCC Requirement
Any changes or modifications not expressly approved by the party responsible for compliance could void the user' s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.
