Professional Multi-brand Multi-system Car Diagnostic Tools

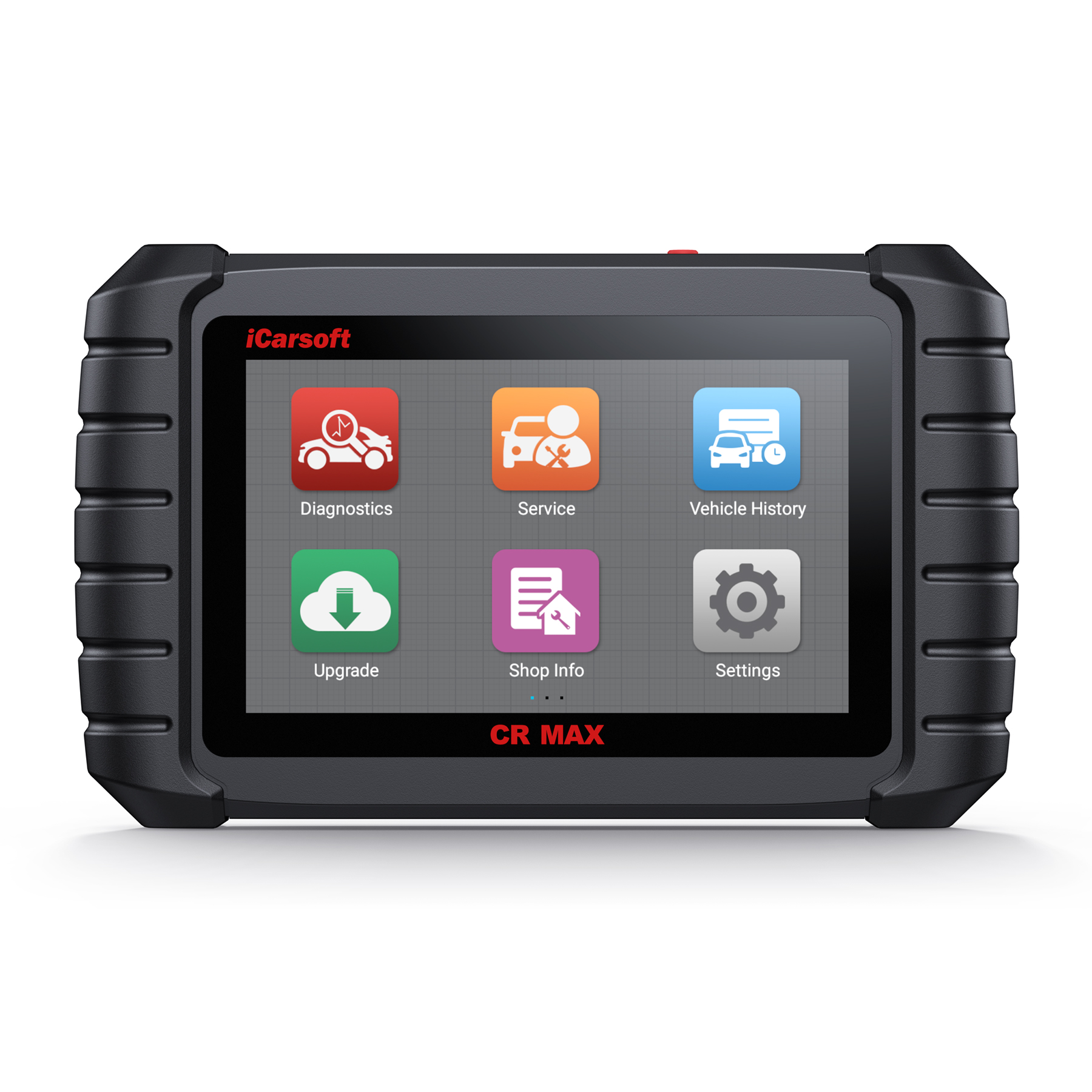

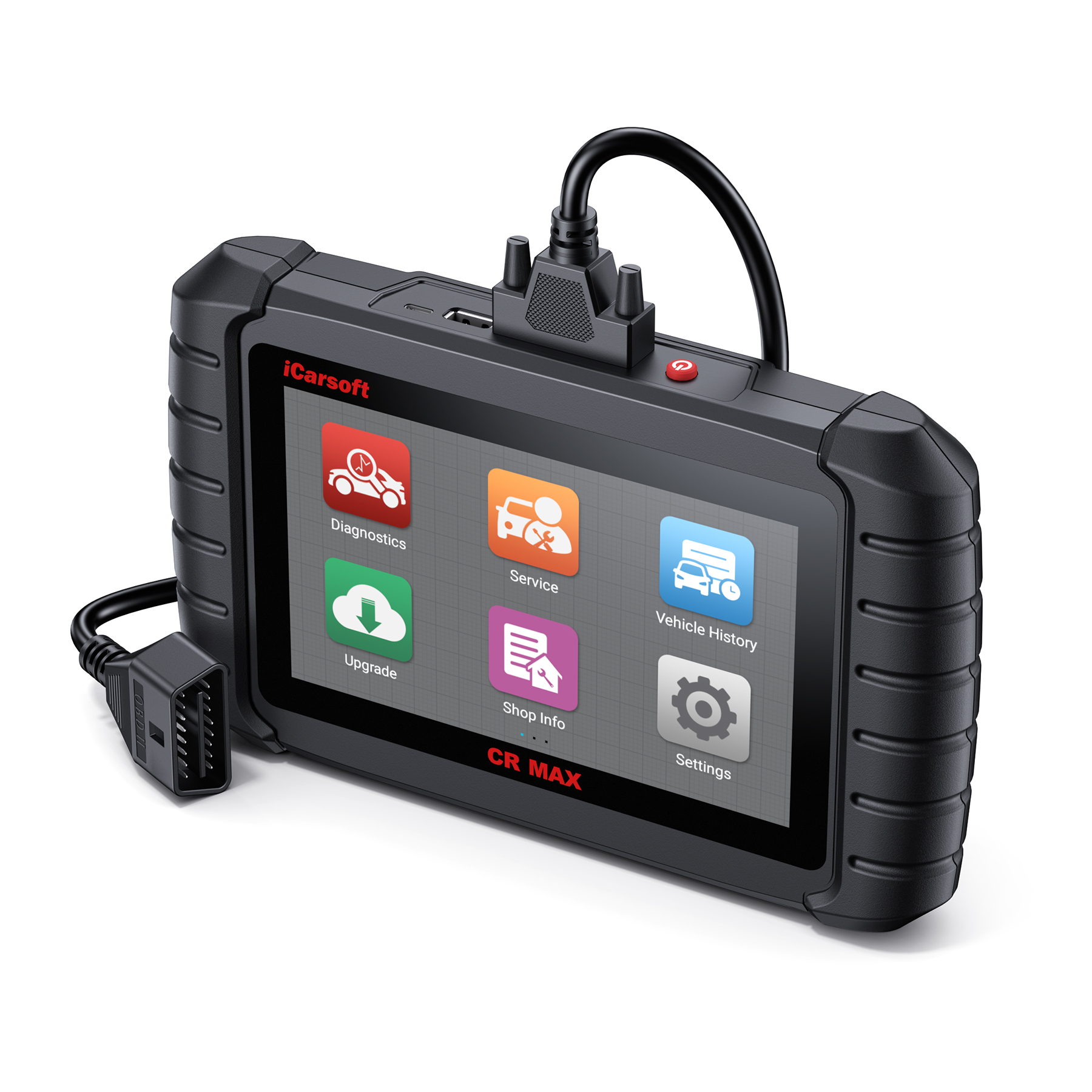

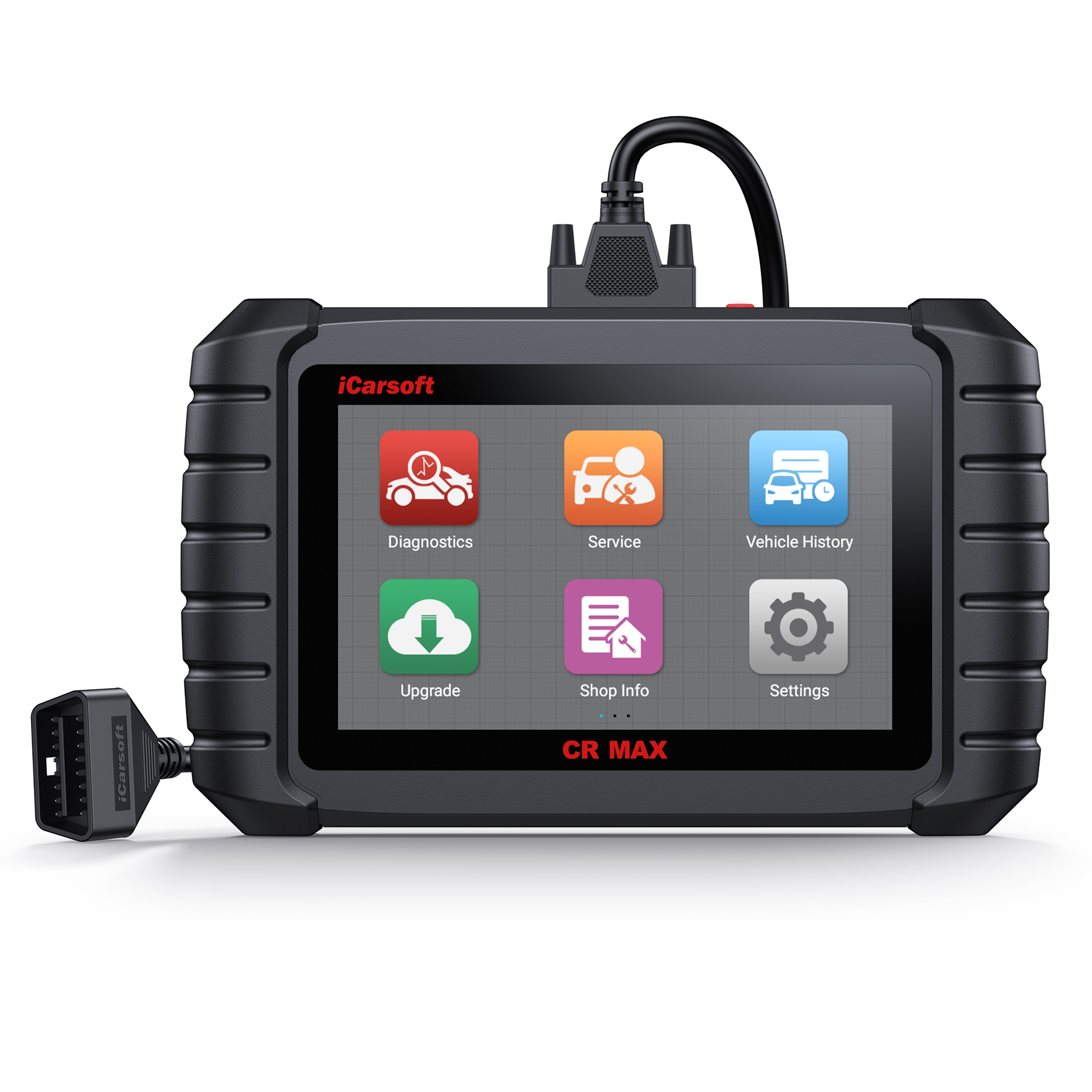

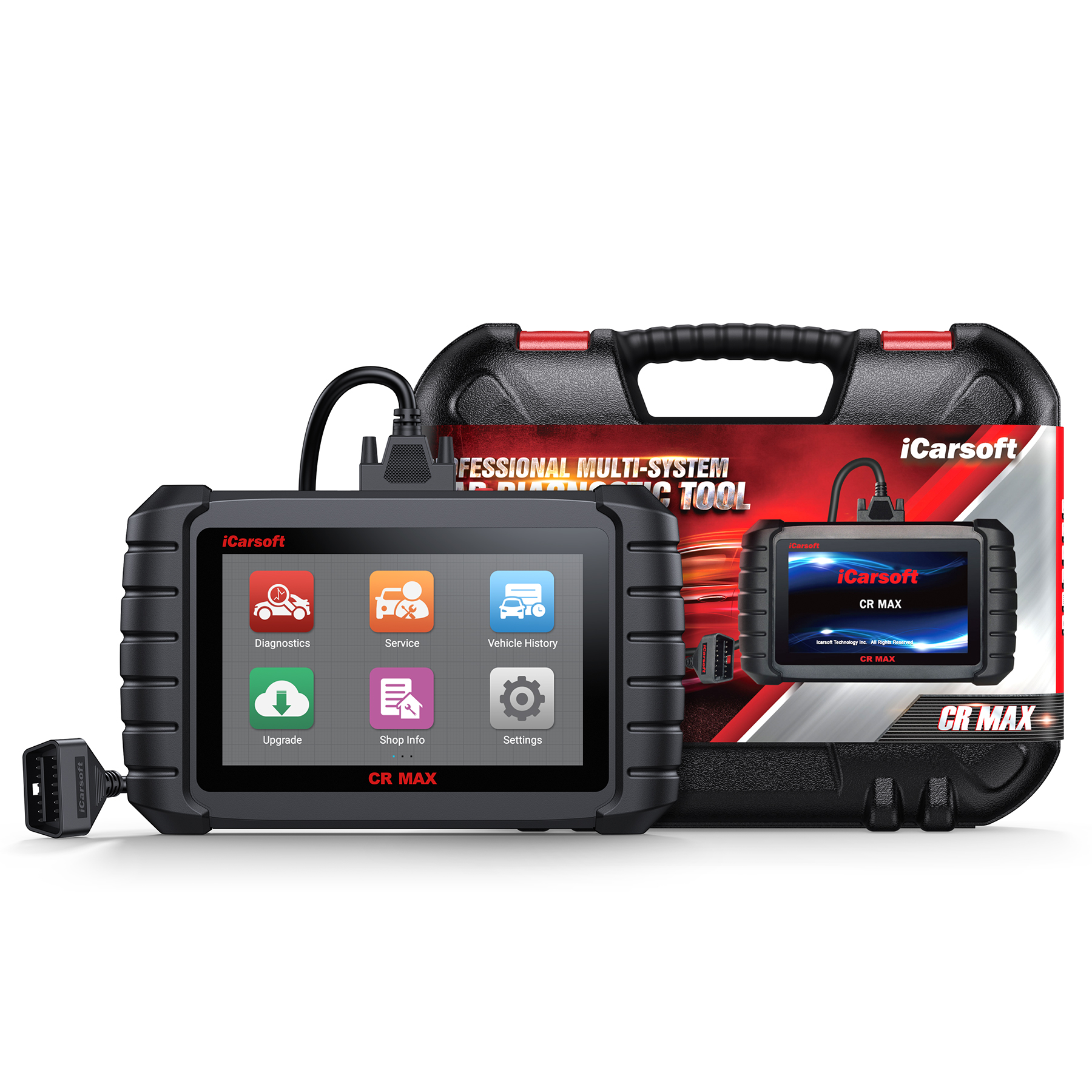

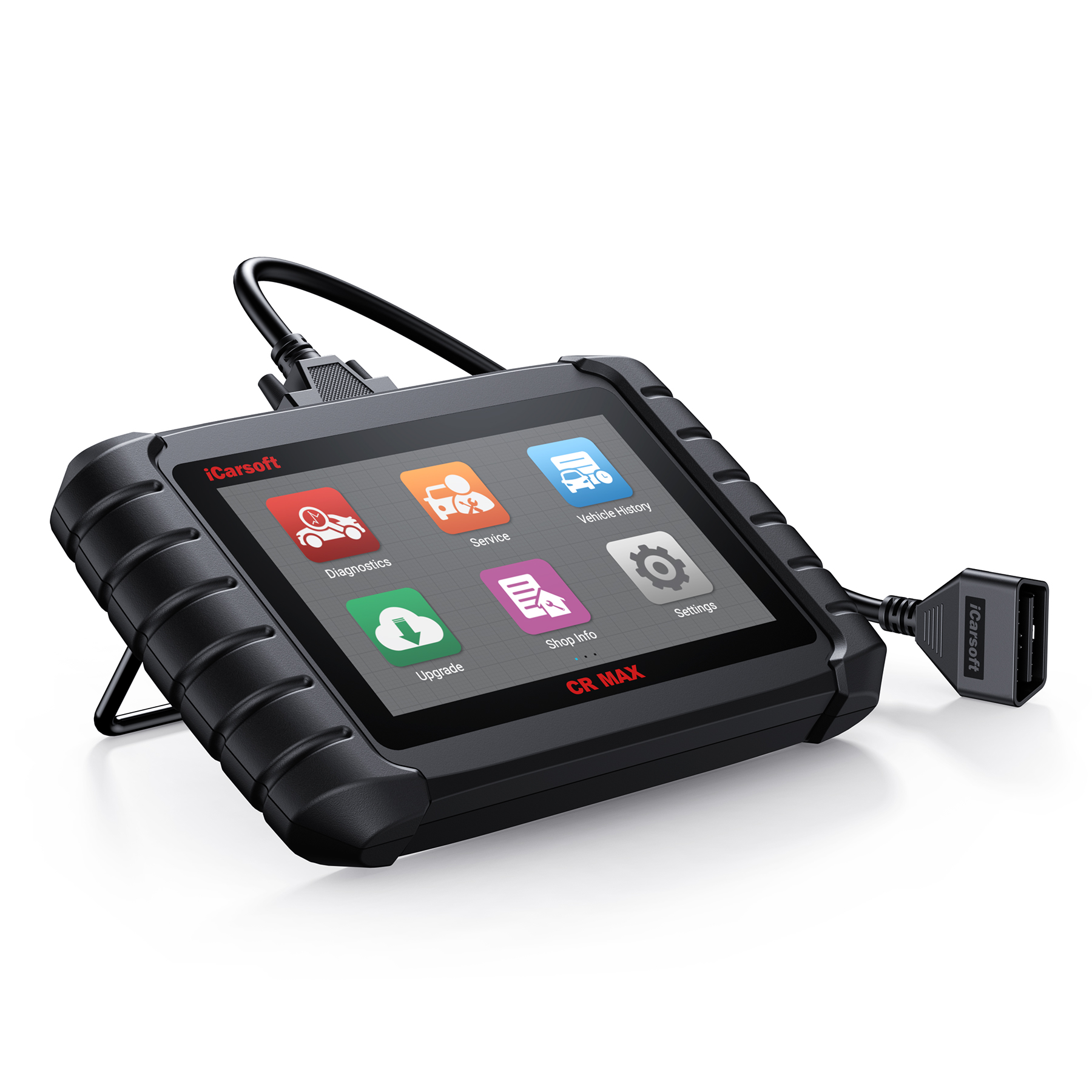

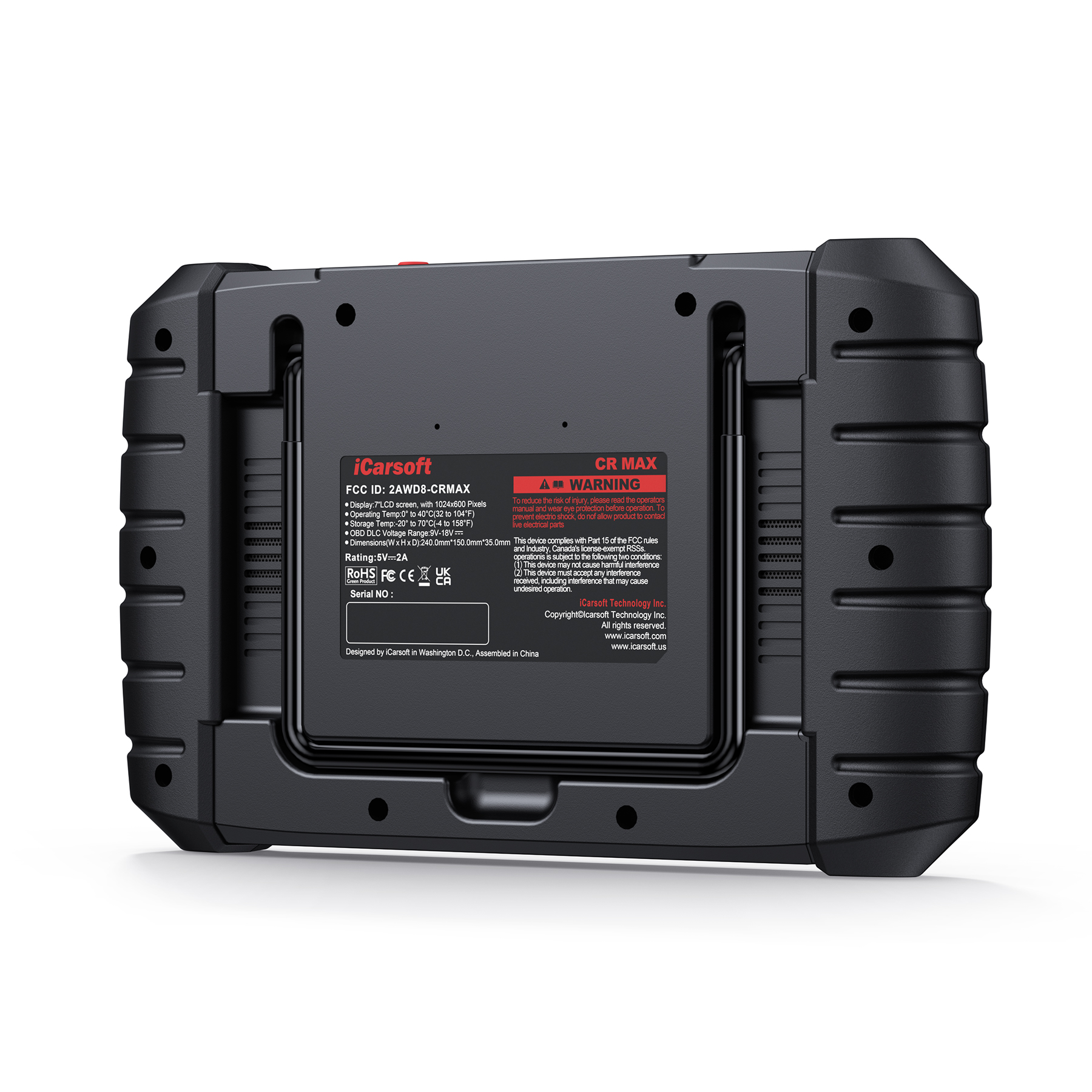

iCarsoft CR MAX

OPERATING SYSTEM:ANDROID 8.1.0
PROCESSOR:4NUCLEAR 1.3 GHZ
MEMORY:16GB
DISPLAY:7-INCH LCD CAPACITIVE TOUCHSCREEN WITH 1024X600 RESOLUTION
CONNECTIVITY:MINI USB 2.0/ USB2.0/ WI-FI / BLUETOOTH/OBD II
BODY COLOR:BLACK
AUDIO INPUT/OUTPU: OUTPUT: BUZZER & SPEAKER
INPUT: N/A
POWER AND BATTERY: 3.7 V/5000MAH LITHIUM-POLYMER BATTERY
CHARGES VIA 5 VDC POWER SUPPLY: 0BD DLC VOLTAGE RANGE:9-18V
TESTED BATTERY LIFE: AROUND 5 HOURS OF CONTINUOUS USE

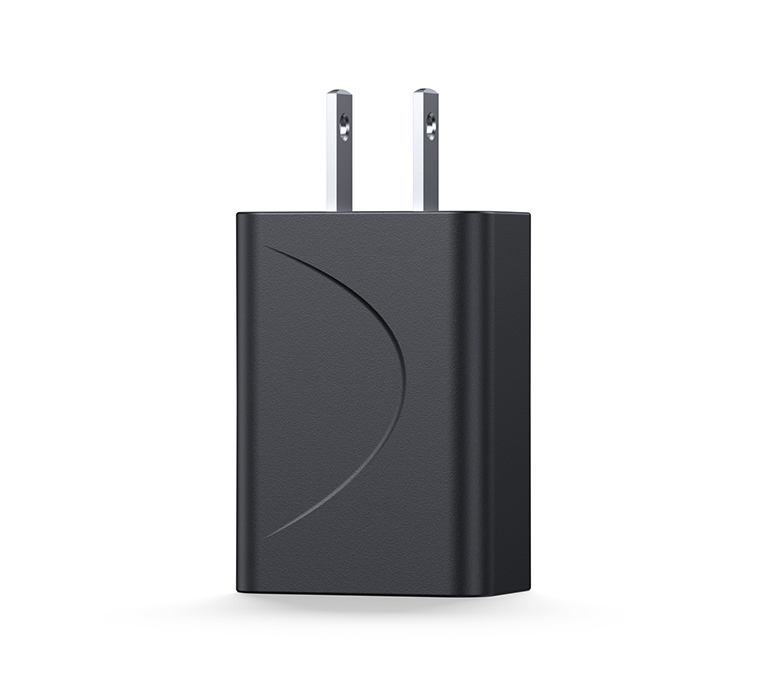

BATTERY CHARGER:5V/2A
POWER CONSUMPTION:500MA(LCD ON WITH DEFAULT BRIGHTNESS,WI-FI ON)@3.7 V
OPERATING TEMP:0 TO 40°C (32 TO 104°F)
STORAGE TEMP:-20 TO 70° C(-4 TO 158°F)
OPERATING HUMIDITY: 5%-95% NON-CONDENSING
DIMENSIONS(W*H*D): 40.0MM*150.0MM*35.0MM
NET WEIGHT:750G

Color: black
Price: $499.95 USD
+ -

Current inventory: 653

DescriptionSpecificationReviews

MAX SYSTEMS.

MAX VEHICLE MAKES.

MAX POWERFUL.

PRODUCT INTRODUCTION
iCarsoft CR MAX is a Professional and powerful vehicle fault diagnosis tool for multi-brand vehicles (more than 40 kinds of vehicle makes) developed by iCarsoft Technology Inc. With a 7.0" LCD Capacitive Touchscreen and that displays at 1024 x 600 quality. Together with the ability to quickly read and clear DTCs for all available modules of the majority of the makes and models on the market, CR MAX provides you with superior special functions. It features full ECU diagnosis of most vehicle brands and test modes mainly include: CANBUS, ISO9141, KWP2000, and J1850 etc. It enables technicians to accurately diagnose complex problems.
CR MAX vehicle coverage
European:
for Sprinter, for BMW, for Mini, for VW, for Seat, for Skoda, for Volvo, for Porsche, for SAAB, for EU Ford, for Dacia, for Renault, for Fiat, for Mercedes-Benz, for Citroen, for Jaguar, for Peugeot, for Audi, for Opel, for Land Rover, for Smart, for Vauxhall, for Alfa-Romeo, for Lancia.
Asia:

for Nissan, for Infiniti, for Toyota, for Lexus, for Scion, for Honda, for Isuzu, for Hyundai, for Kia, for Daewoo , for Mazda, for Acura, for Subaru, for Mitsubishi, for Suzuki,

America:

for USFord, for GM, for Chrysler

Australia:

for Holden, for AUS Ford

Read &Clear codes for all available systems.
Display live data in text, graph & analog for easy data review.
Actuation Test / Bi-directory Test is used to access vehicle-specific subsystem and component tests.
The CR MAX can record the vehicle texts history and identify the vehicle information automatically. Also keep the live data information.
1. Comprehensive OBD relearn coverage.
2. Onscreen relearn procedure.
3. Read &Clear codes for all available systems.
4. Display live data in text, graph & analog for easy data review.
5. Auto VIN technology can automatically identify model and year information in no time.
6. Actuation Test / Bi-directory Test is used to access vehicle-specific subsystem and component tests.
7. Steering Angle Sensor (SAS) calibration: Calibrates the steering wheel to straight ahead, or recalibrates SAS while steering part replacement.
8. Oil Light/Service Reset: Support service lamp reset, reset service mileage and service intervals.
9. Electronic Parking Brake (EPB): System maintenance deactivates and reactivates the EPB system for replacement and initialization.
10. Diesel Particulate Filter (DPF): Regeneration control system, requests the DPF regeneration process while DPF blockage and turn off the DPF indicator.
11. Battery Management System (BMS): Registers new battery to the BMS while battery replacement.
12. Electronic Throttle Control system (ETC): Relearns the throttle valve control value while clear or replaces the throttle value.
13. ABS Bleeding: Release the air to restore ABS brake sensitivity, or relearn while ABS replaced.
14. Injector coding: Relearn the injector control parameter while the injector renewed or replaced.
15. Support TPMS programming service: It allows you to look up the tire sensor IDs from the vehicle's ECU, inputting TPMS sensor replacement IDs and testing sensors.
16. AFS Head Lamp reset means that the adaptive front lighting system can be rotated to either side, pressing the button means they stay pointing straight forward, and don't turn anymore when turning the steering wheel.
17. Air Suspension: Try reset electronic suspension air ride with the message system close all doors flip through message system go to suspension reset or off.
18. Gearbox Reset: Procedure Reset Transmission Adaptive Learning DIY. Start the car and drive. Once you perform this procedure the Engine Control Unit (ECU) and Transmission Control Unit (TCU) will work together to learn how you drive by monitoring your driving pattern. After you follow this programming method of the TCU / ECU drive the car.
19. Air conditioning service: Calibration of air-conditioning related control units, such as additional calibration of air mass flow, etc.
20. Air Filter Self-learning process after replacing the air filter.
21. Fuel Pump activation function, activate it when replace a new one.
22. DTC library to look up when user is operating this tool.
23. Support Freeze Frame of Fault Code functions.
24. Automatic software upgrade.
25. Easy to feedback test questions online.
26. Provides convenient instruction with customer in interface.
27. Multi-language: English, German, Dutch, Spanish, French. (More languages will be added in the future.)
Note!
*Certain functions may be limited from the vehicle manufacturer due to the requirement of a special factory access code.
*This scan tool covers 20 years models, so some functions may not be available on all years /models.
*We reserve the rights to make any change to this description without notice.
Product details Display
Dimensions(W*H*D)
240.0mm*150.0mm*35.0mm
Operating System
Android 8.10
Processor
4Nuclear 1.3GHz
Display
7-inch LCD capacitve touchscreen with 1024x600 resolution
OBDII FUNCTION
1. Read Codes
2. Erase Codes
3. I/M Readiness -- I/M Readiness indicate whether or not the various emissions-related systems on the vehicle are operating properly and are ready for Inspection and Maintenance testing. 4. DataStream
5. Freeze Frame -- When an emission-related fault occurs, certain vehicle conditions are recorded by the on-board computer. This information is referred to as freeze frame data. Freeze Data is a snapshot of the operating conditions at the time of an emission-related fault.
6. O2 Sensor Test -- This option allows retrieval and viewing of O2 sensor test results for most recently performed tests from the vehicle's on-board computer.
7. On-Board Monitoring -- This function can be utilized to read the results of on-board diagnostic monitoring tests for specific components/systems.
8. Evap System Test -- The EVAP test function lets you initiate a leak test for the vehicle's EVAP system. Before using the system test function, refer to the vehicle's service repair manual to determine the procedures necessary to stop the test.
9. Vehicle Information -- The option displays the vehicle identification number (VIN),the calibration verification number (CVN), and other information of the test vehicle.
10. Retrieve generic (P0, P2, P3, and U0), manufacturer specific (P1, P3, and U1) codes and pending codes.
11. Turn off Check Engine Light (MIL), clear codes and reset monitors
12. Read live PCM DataStream
13. Support CAN (Controller Area Network) and all other
14. Multilingual menu and DTC definitions- English, Spanish, and German, etc.
15. Read pending DTCs
16. Read permanent DTCs
17. DTCs search
18. Supports most of the OBDII/EOBD test modes include: CAN, ISO9141, KWP2000, J1850 VPW and J1850 PWM.
19. Works on most of 2001 and later OBDII compliant PETROL European vehicles
20. Works on most of 2004 and later OBDII compliant DIESEL European vehicles
21. Works on most of 1996 and later OBDII compliant US and Asian vehicles
22. View & Graph Live Data in Color Graphing and blazing fast refresh rate for better graphing and live data readings.
23. Comprehensive Help, Including OBD Parameter, Mode Explanations & More.
PRODUCT SPECIFICATIONS
Recommended Use

Indoor

Operating System

Android 8.1.0

Processor

4Nuclear 1.3 GHz

Memory

16GB

Display

7-inch LCD capacitive touchscreen with 1024x600 resolution

connectivity

Mini USB 2.0/ USB2.0/ Wi-Fi / Bluetooth/OBD II

Body Color

Black

Audio input/output

Output: buzzer & speaker

Input: N/A

Power and Battery

3.7 V/5000mAh lithium-polymer battery

Charges via 5 vDC power supply

0BD DLC Voltage Range:9-18V

Tested Battery Life

Around 5 hours of continuous use

Battery Charger

5V/2A

Power Consumption

500mA(LCD on with default brightness,Wi-Fi on)@3.7 V

Operating Temp

0~40℃ (32~104 °F)

storage Temp

-20~70℃ (-4~158°F)

Operating Humidity

5%-95% non-condensing

Dimensions(W*H*D)

40.0mm*150.0mm*35.0mm

Net weight

750g

Support Protocols

IS09141-2JS014230-2,IS015765,K/L-Line

SAE-J1850 VPW,SAE-J1850PWM,

IS011898(Highspeed,Middlespeed, Lowspeed and Singlewire CAN,fault-tolerant CAN)

SAE J2610,GM UART UART Echo Byte Protocol

Honda Diag-H Protocol,TP2.0,TP1.6

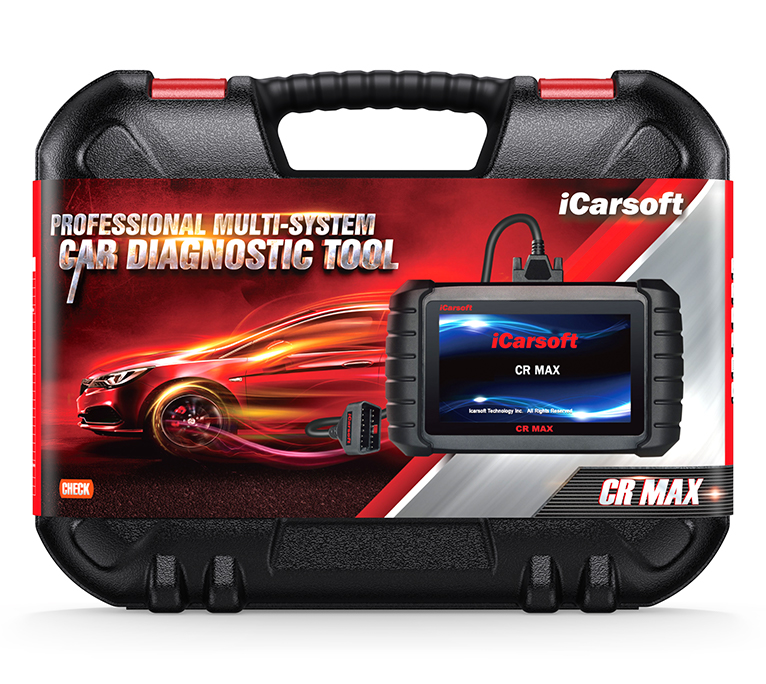

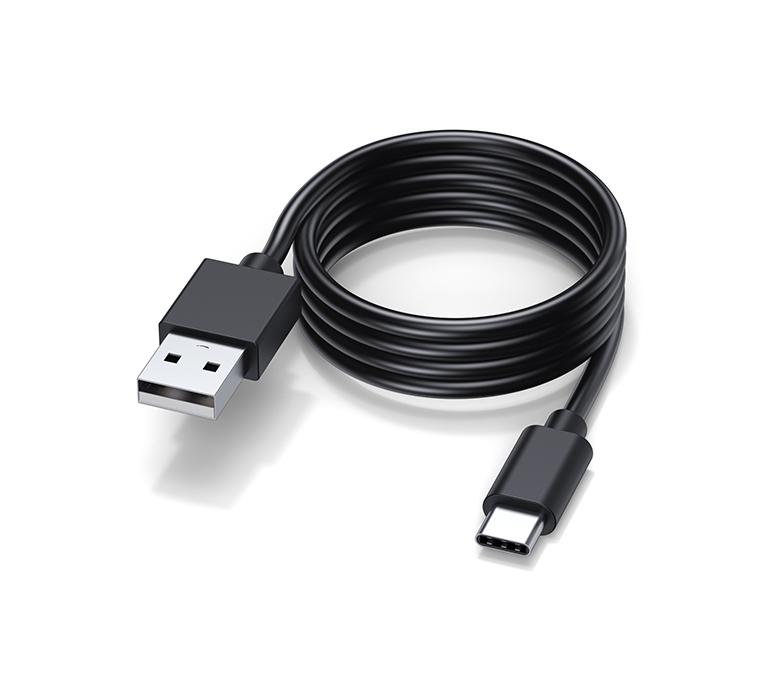

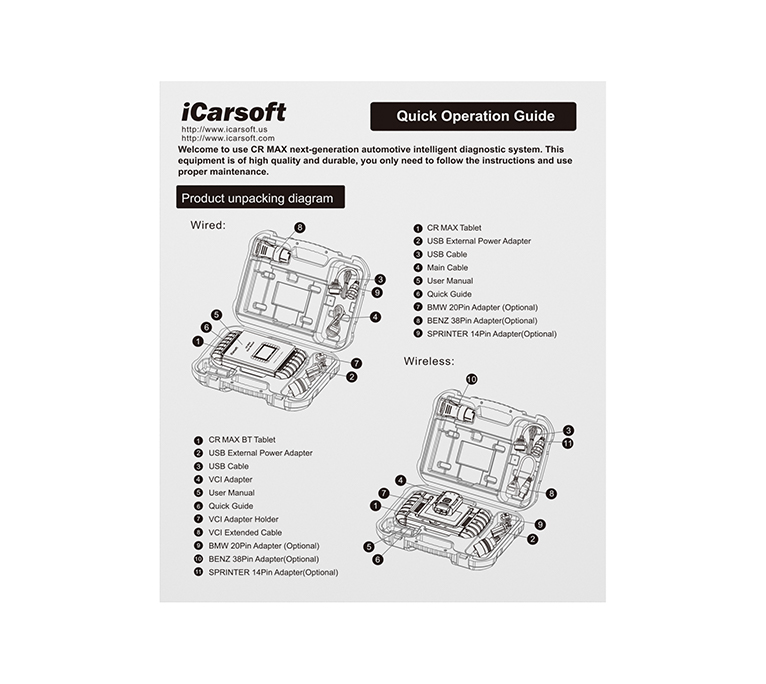

CONTENTS
