Professional Multi-brand Multi-system Car Diagnostic Tools

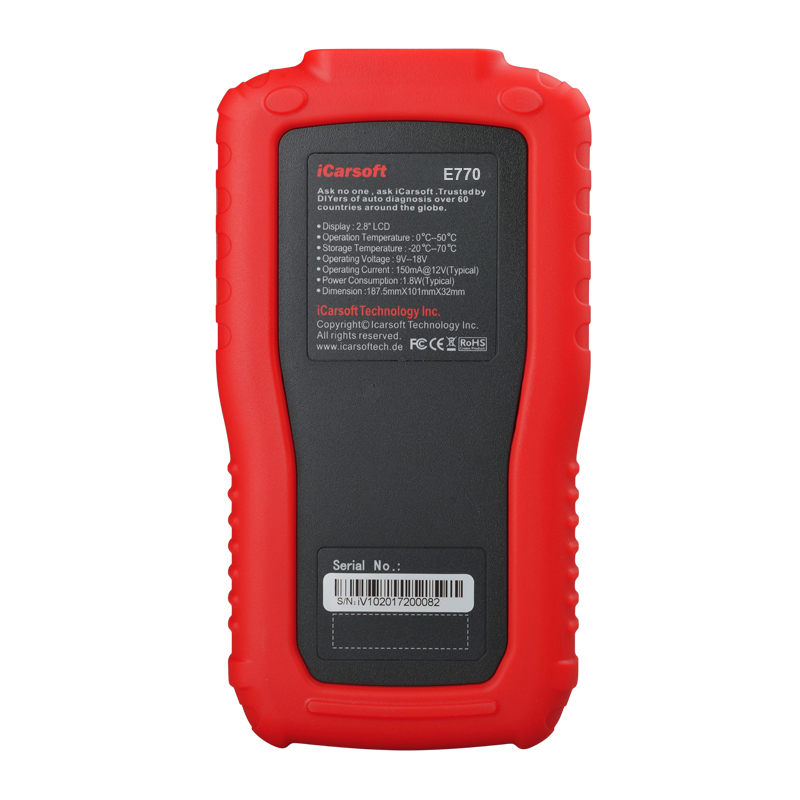

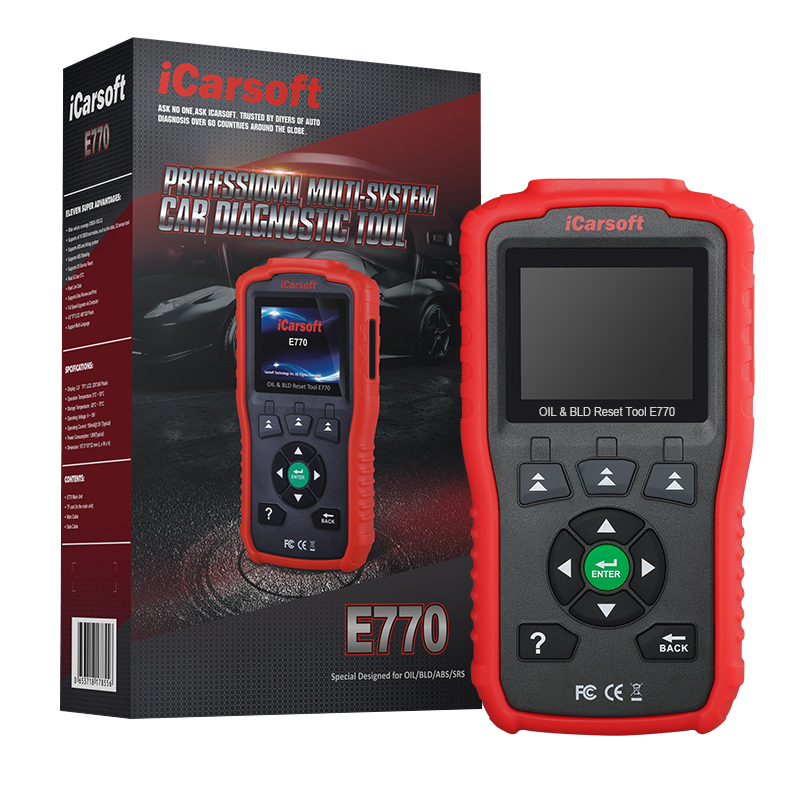

iCarsoft E770

Display: 2.8″ TFT LCD, 320*240 Pixels
Operation Temperature: 0°C ~ 50°C
Storage Temperature: -20°C ~ 70°C
Operating Voltage: 9 ~ 18V
Operating Current: 150mA@12V (Typical)
Power Consumption: 1.8W (Typical)
Dimension: 187.5*101*32 mm (L x W x H)

Color: red
Price: $95.95 USD
+ -

Current inventory: 99999


iCarsoft E770 ABS+SRS+OIL+BLD+OBD II car diagnostic tool
  E770 is a Professional and powerful vehicle fault diagnosis tool for iCarsoft E770 ABS+SRS+OIL+BLD+OBD II car diagnostic tool developed by iCarsoft Technology Inc. With a 2.8" TFT LCD and unique diagnostic software, it features full ECU diagnosis of multi vehicle makes and test modes mainly include: CANBUS, ISO9141, KWP2000, and J1850 etc. It enables technicians to accurately diagnose complex problems.
Product Features

1) The E770 covers more than 40 vehicle makes. Including the latest 2016/2017
models on selected makes with OBDII-16 DLC. It can do it all-reads and clears trouble
codes on engine, ABS and Airbag.
2) Support OBDII/EOBD Ten Modes of Operation.
3) Read Live Data.
4) Easy To Use with Silicone Keys.
5) ABS Bleeding (BLD), release the air to restore ABS brake sensitivity,
or relearn while ABS replaced.
6) Oil Light/Service Reset: Support service lamp reset.
7) The Print Data function allows you printing out diagnostic data recorded by
the scan tool or customized test reports.
8) DTC Library to lookup when user is operating this tool.
9) Upgrade via PC.
10) Multi-language: English, German, Dutch, Spanish, French.
Certain functions may be limited from the vehicle manufacturer due to
the requirement of a special factory access code.
This scan tool covers over 20 years of models,
so some functions may not be available on all years/models.

ELEVEN super advantages

Wide vehicle coverage (OBDII-16DLC)
Supports all 10 OBDII test modes, such as live data, O2 sensor test
Supports ABS and Airbag system
Supports ABS Bleeding
Supports Oil Service Reset
Read &Clear DTC
Read Live Data
Supports Data Review and Print
Full Speed Upgrade via Computer
2.8″ TFT LCD, 320*240 Pixels
Support Multi-Language

OBDII function
1. Read Codes
2. Erase Codes
3. I/M Readiness -- I/M Readiness indicates whether or not the various
emissions-related systems on the vehicle are operating properly and are
ready for Inspection and Maintenance testing.
4. Data Stream
5. Freeze Frame -- When an emission-related fault occurs,
certain vehicle conditions are recorded by the on-board
computer. This information is referred to as freeze
frame data. Freeze Data is a snapshot of
the operating conditions at the time of
an emission related fault.
6. O2 Sensor Test -- This option allows retrieval and
viewing of O2 sensor test results for most recently
performed tests from the vehicle ' s on-board computer.
7. On-Board Monitoring -- This function can be utilized
to read the results of on-board diagnostic monitoring tests
for specific components/systems.
8. Evap System Test -- The EVAP test function lets you
initiate a leak test for the vehicle's EVAP system.
Before using the system test function, refer to
the vehicle's service repair manual to determine
the procedures necessary to stop the test.
9. Vehicle Information -- The option displays the vehicle
identification number (VIN), the calibration verification
number (CVN), and other information of the test vehicle.
10. Retrieve generic (P0, P2, P3, and U0), manufacturer
specific (P1, P3, and U1) codes and pending codes
11. Turn off Check Engine Light (MIL),
clear codes and reset monitors
12. Read live PCM data stream
13. Support CAN (Controller Area Network) and all other
14. Multilingual menu and DTC definitions- English, Spanish, and German, etc.
15. Read pending DTCs
16. Read permanent DTCs
17. DTCs search
18. Supports most of the OBDII/EOBD test modes include: CAN, ISO9141, KWP2000, J1850 VPW and J1850 PWM.
19. Works on most of 2001 and later OBDII compliant PETROL European vehicles
20. Works on most of 2004 and later OBDII compliant DIESEL European vehicles
21. Works on most of 1996 and later OBDII compliant US and Asian vehicles
22. View & Graph Live Data in Color Graphing and blazing fast refresh rate for better graphing and live data readings.
23. Comprehensive Help, Including OBD Parameter, Mode Explanations & More.

1) Display: 2.8″ TFT LCD, 320*240 Pixels
2) Operation Temperature: 0°C ~ 50°C
3) Storage Temperature: -20°C ~ 70°C
4) Operating Voltage: 9 ~ 18V
5) Operating Current: 150mA@12V (Typical)
6) Power Consumption: 1.8W (Typical)
7) Dimension: 187.5*101*32 mm (L x W x H)

Only Red Version Available Now
