What Is Car Fault Code P0409? Diagnose & Clear It with iCarsoft CR Pro S
If your check engine light illuminates and your diagnostic tool retrieves P0409, you’re facing an issue with your vehicle’s Exhaust Gas Recirculation (EGR) System—specifically a malfunction in the EGR Valve Position Sensor Circuit (Intermittent/Erratic). The EGR system reduces nitrogen oxide emissions by recirculating exhaust gas back to the engine, and this code signals inconsistent or untrustworthy data from the valve’s position sensor. Ignoring P0409 can lead to rough idling, reduced engine power, increased fuel consumption, or failed emissions tests. In this guide, we’ll break down what P0409 means, why it occurs, and how the iCarsoft CR Pro S—your all-in-one diagnostic solution—can help you resolve it efficiently.

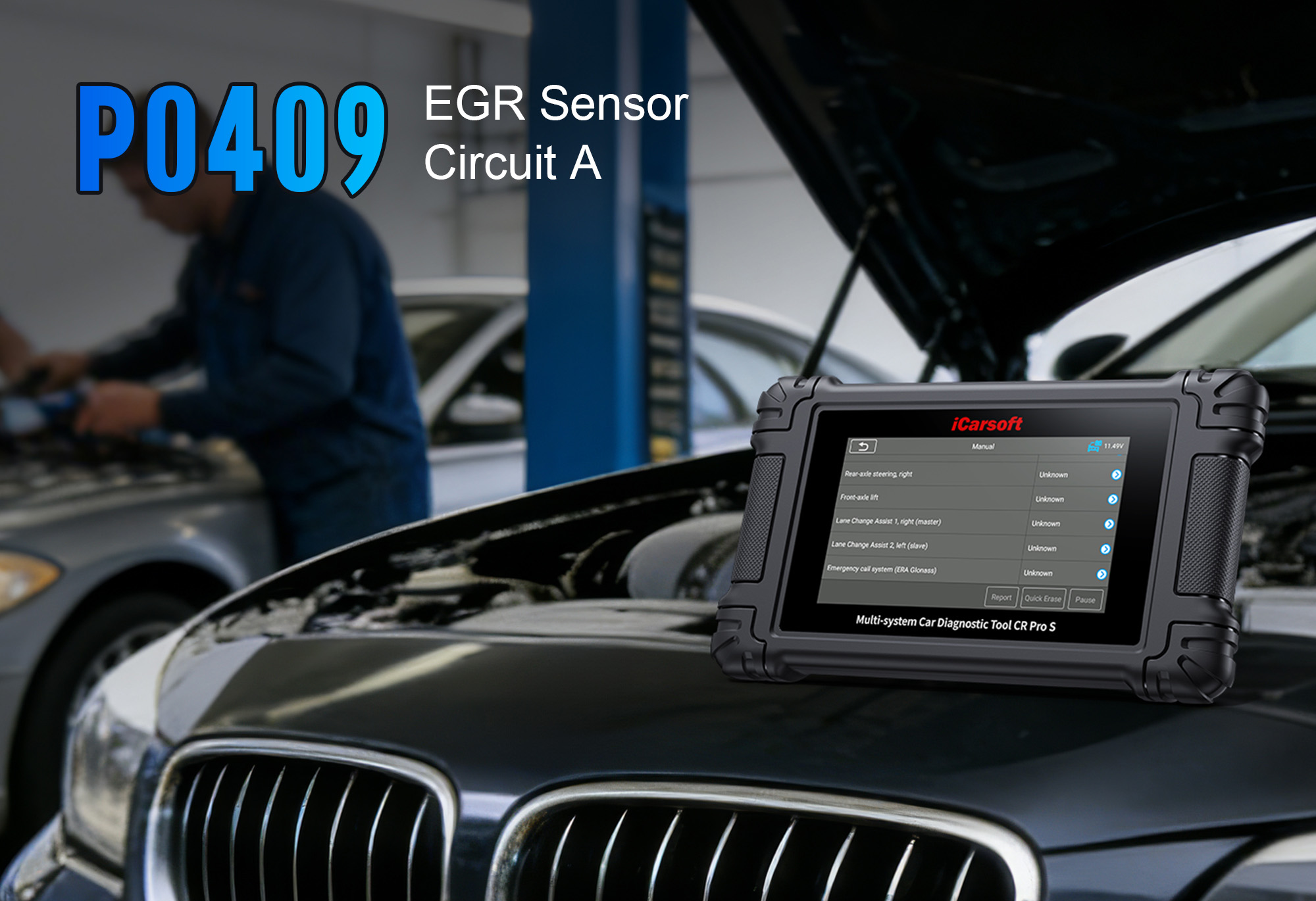

iCarsoft CR Pro S testing EGR valve position sensor circuit & EGR system operation to diagnose P0409 fault code
What Exactly Is Fault Code P0409?
P0409 is a generic OBD-II trouble code defined as “Exhaust Gas Recirculation (EGR) Valve Position Sensor Circuit Intermittent/Erratic”. The EGR valve position sensor monitors the valve’s opening/closing degree and sends real-time data to the ECU (Engine Control Unit). When the ECU detects fluctuating, intermittent, or out-of-range signals from this sensor’s circuit, it triggers P0409—indicating a communication failure or component malfunction in the EGR system.
This code applies to gasoline and diesel vehicles equipped with EGR systems. Left unaddressed, it may cause the ECU to limit engine performance and increase emissions to protect critical components.
Why Does P0409 Happen? Common Causes
P0409 typically stems from issues with the EGR valve position sensor, its circuit, or related EGR components:
-
Faulty EGR Valve Position Sensor: Internal electrical failure or contamination (e.g., carbon buildup) causes erratic signal output.
-
Wiring/Connector Issues: Damaged, frayed, or shorted wires, or loose/corroded connectors between the sensor, EGR valve, and ECU.
-
Carbon-Clogged EGR Valve: Buildup restricts valve movement, forcing the position sensor to send inconsistent data.
-
Malfunctioning EGR Valve: Stuck or leaking EGR valve disrupts normal position sensing.
-
Poor Electrical Ground: A weak or damaged ground connection disrupts the sensor’s circuit voltage.
-
ECU Malfunction: Rarely, the engine control unit fails to interpret the sensor’s signal correctly.
Why the iCarsoft CR Pro S Is Ideal for P0409
When it comes to diagnosing and fixing P0409, the iCarsoft CR Pro S outperforms basic scanners by offering deep EGR system insights and global compatibility. Here’s why it’s your best tool:
Full EGR System Scans
Unlike basic scanners that only read the code, the CR Pro S dives into the EGR valve position sensor circuit, EGR valve operation, and related engine data.
Live Data Monitoring
View real-time EGR valve position sensor voltage, valve opening degree, and ECU feedback to verify intermittent signals.
Bi-directional Control
Test the EGR valve and position sensor by sending commands—confirm if components operate as intended without disassembly.
Global Vehicle Support
Works with over 60 makes (Ford, Toyota, BMW, Mercedes-Benz, VW, etc.)—compatible with most gasoline and diesel vehicles with EGR systems.
EGR-Specific Diagnostics
Supports EGR system calibration, reset, and component activation (varies by vehicle) to restore optimal performance.
One-Click Code Clear
After fixing the issue, erase P0409 and turn off the check engine light in seconds.
Lifetime Free Updates
Stay compatible with new EGR system designs and sensor technologies via Wi-Fi.
Feedback Function
Get customized repair suggestions from certified professionals tailored to your car’s make and model.
How to Diagnose & Fix P0409 with the CR Pro S (Step-by-Step)
-
1. Connect the CR Pro S
Plug the tool into your car’s OBD-II port (under the dashboard) and turn on the ignition.
-
2. AutoVIN Identify
The tool automatically detects your vehicle’s details—no manual entry needed.
-
3. Scan for Codes
Select “Full System Scan” or “Engine System Scan” to retrieve P0409 and related codes (e.g., P0401 for EGR flow insufficient, P0404 for EGR valve position performance).
-
4. Check Live Data
Monitor EGR valve position sensor voltage and valve movement—fluctuating or unresponsive values confirm an intermittent circuit or component problem.
-
5. Test Components
Use bi-directional control to activate the EGR valve and verify sensor responsiveness—no signal with valve movement points to a faulty sensor; no valve movement indicates a valve or wiring issue.
-
6. Fix the Root Cause
Replace the EGR valve position sensor, clean/replace the EGR valve, repair wiring/connectors, or address carbon buildup (based on your findings).
-
7. Clear the Code
Use the “Erase Codes” function to reset P0409 and the check engine light.
-
8. Re-Scan & Verify
Run a follow-up scan after driving to ensure the code doesn’t return—confirm the EGR system and position sensor are working properly.
FAQs About P0409 & the iCarsoft CR Pro S
Q: Can I drive with P0409?
A: You can drive short distances, but reduced performance and emissions non-compliance make prompt diagnosis with the CR Pro S recommended. Avoid heavy loads or highway speeds.
Q: Will the CR Pro S work with my car to diagnose P0409?
A: Yes! It supports over 60 global makes and all 1996+ OBD-II compliant gasoline/diesel vehicles with EGR systems.
Q: Do I need mechanical experience to use the CR Pro S for P0409?
A: No! Its 5-inch touchscreen, AutoVIN function, and clear instructions make it user-friendly for beginners. It highlights EGR components for easy reference.
Q: Can the CR Pro S distinguish between a faulty sensor and a clogged EGR valve?
A: Absolutely. Bi-directional control tests valve movement—if the valve operates but the sensor sends erratic data, the sensor is faulty; if the valve doesn’t move, it’s likely clogged or damaged.
Q: After fixing P0409, will the CR Pro S clear the code permanently?
A: Yes—once the root cause (e.g., faulty sensor, clogged valve) is addressed, the “Erase Codes” function clears P0409 permanently. If it returns, the issue wasn’t fully resolved.
Q: Is the CR Pro S better than a basic scanner for P0409?
A: Basic scanners only show P0409—they can’t monitor live EGR data or test valve/sensor operation. The CR Pro S identifies why the circuit is erratic, saving you from unnecessary part replacements.
Q: Does the CR Pro S support diesel vehicles with P0409?
A: Yes! Diesel engines rely heavily on EGR systems, and the CR Pro S includes specialized diesel diagnostic functions (e.g., DPF regeneration) to handle P0409 and related issues.
Q: How often should I update the CR Pro S for P0409 diagnostics?
A: Update every 3–6 months via free Wi-Fi updates to ensure compatibility with new EGR technologies and code definitions.
Final Thoughts: Don’t Let P0409 Compromise Your EGR System
Fault code P0409 is critical for emissions compliance and engine efficiency. With the iCarsoft CR Pro S, you can diagnose and fix it from your garage—no expensive dealership visits required. Its deep EGR system coverage, live data monitoring, and bi-directional control take the guesswork out of repairs, whether you’re a DIY enthusiast or professional mechanic.
Invest in the iCarsoft CR Pro S today to tackle P0409 and hundreds of other engine-related codes—keep your car running cleanly and efficiently.
